You can solve all the Protostar Net challenges just by reading the source code, but where’s the fun in that? I wanted to really get it, so I went ahead and reversed the game myself. And when everything finally made sense, it was such a cool feeling!
Net 0
Description:
This level takes a look at converting strings to little endian integers.
This level is at /opt/protostar/bin/net0
Source code:
#include "../common/common.c"
#define NAME "net0"
#define UID 999
#define GID 999
#define PORT 2999
void run()
{
unsigned int i;
unsigned int wanted;
wanted = random();
printf("Please send '%d' as a little endian 32bit int\n", wanted);
if(fread(&i, sizeof(i), 1, stdin) == NULL) {
errx(1, ":(\n");
}
if(i == wanted) {
printf("Thank you sir/madam\n");
} else {
printf("I'm sorry, you sent %d instead\n", i);
}
}
int main(int argc, char **argv, char **envp)
{
int fd;
char *username;
/* Run the process as a daemon */
background_process(NAME, UID, GID);
/* Wait for socket activity and return */
fd = serve_forever(PORT);
/* Set the client socket to STDIN, STDOUT, and STDERR */
set_io(fd);
/* Don't do this :> */
srandom(time(NULL));
run();
}Analysis
By reading the comments in main(), you can easily understand that it is running a process as daemon, and setting up the socket communication between Client and Server. However, the functions background_process(), serve_forever(), and set_io() don’t exist in standard libraries:
user@protostar:~$ man background_process
No manual entry for background_process
user@protostar:~$ man serve_forever
No manual entry for serve_forever
user@protostar:~$ man set_io
No manual entry for set_ioSo where are they coming from?
Most likely from ../common/common.c, which seems to have a bunch of useful functions for setting up the environment.
Let’s run the program to see what’s happen:
user@protostar:/opt/protostar/bin$ ./net0
user@protostar:/opt/protostar/bin$ ps aux | grep net0
999 1390 0.0 0.0 1532 272 ? Ss 22:04 0:00 /opt/protostar/bin/net0
user 1605 0.0 0.0 3300 736 pts/0 S+ 22:23 0:00 grep net0Nothing happens here, but it appears to be running in the background.
Time to investigate further with strace:

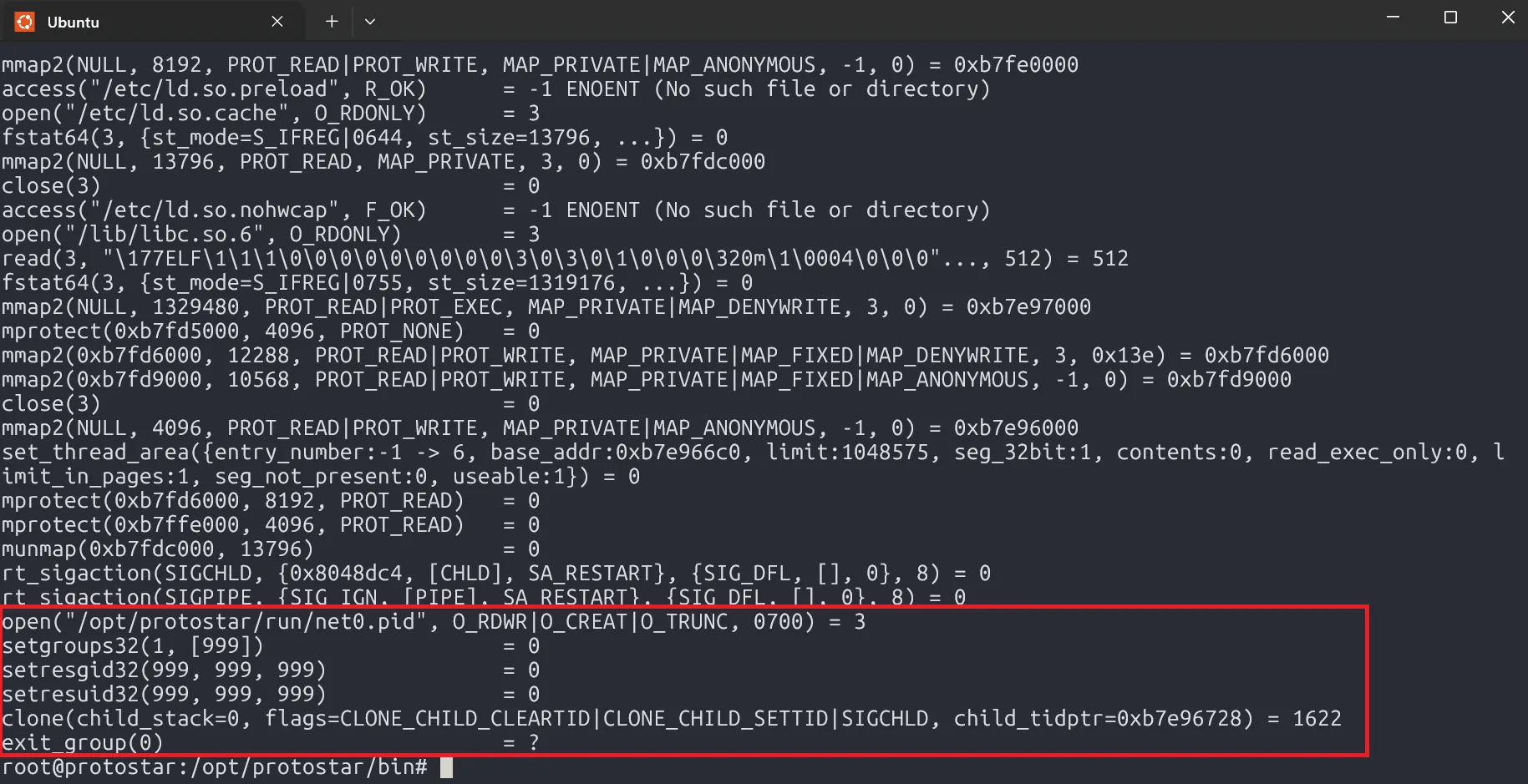

Running strace as root reveals plenty of useful details. It first opens the .pid file with Read and Write permission (fd 3), then then drops root privileges by setting the group ID, user ID, and effective ID to 999. Finally, it calls clone, (similar to fork), creating a child process while the parent process exits leaving the child process orphaned.
This literally refers to Orphan Process. Because we did this intentionally, we also refered to this as a daemon (background process).
It is sometimes desirable to intentionally orphan a process, usually to allow a long-running job to complete without further user attention, or to start an indefinitely running service or agent; such processes (without an associated session) are known as daemons, particularly if they are indefinitely running.

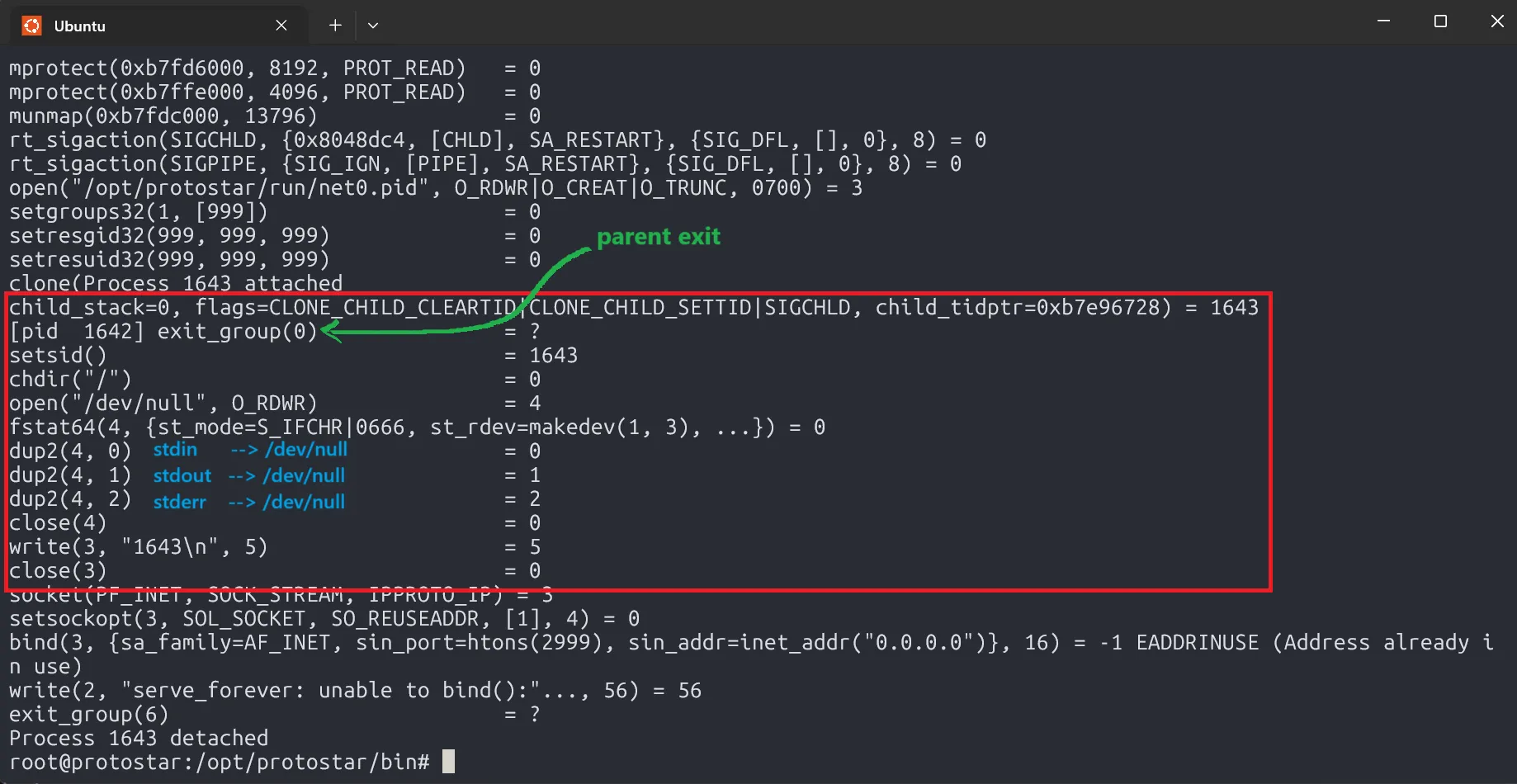

So, we can run strace with -f flag to follow the child processes created instead of staying in the parent process.
After clone, the parent process exits, while the child process continues setting up its environment, detaches from the terminal, and eventually writes its PID into the .pid file.
Now the fun part starts when socket communication is established.

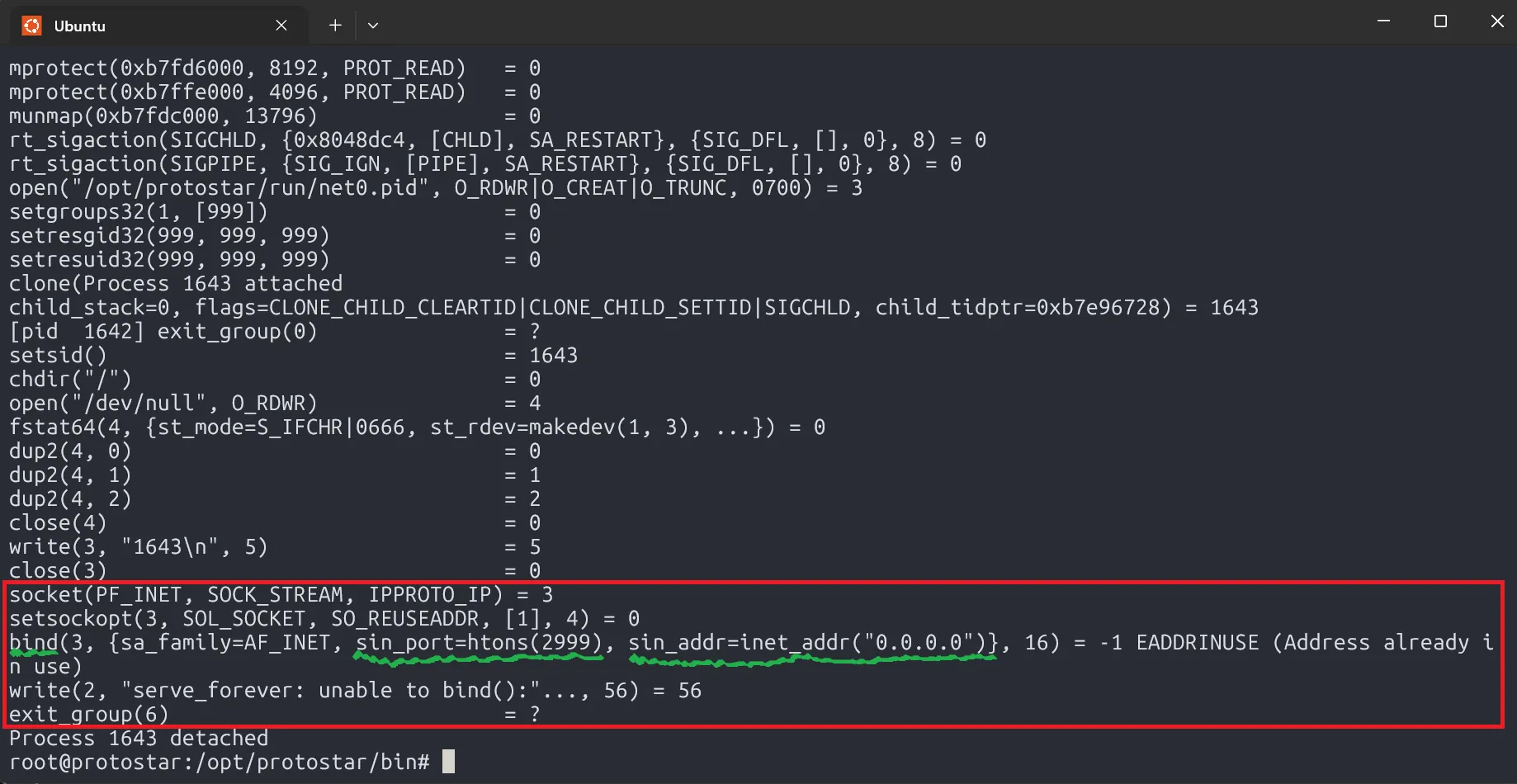

The socket binds to port 2999, listening for connections from any network (0.0.0.0). The message “Address already in use” appears because we previously ran ./net0, meaning the process is still active.

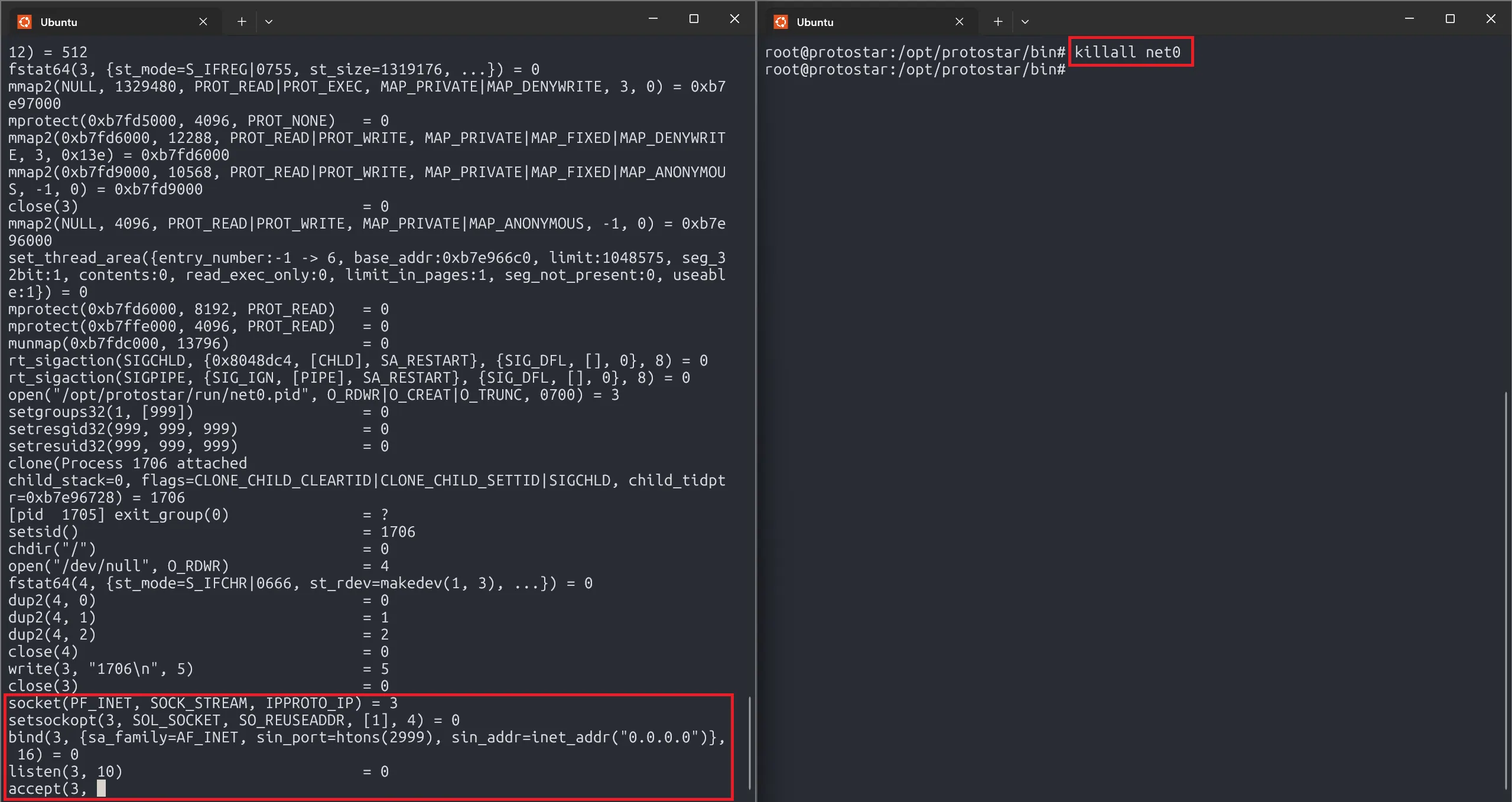

Let’s kill that process and rerun:

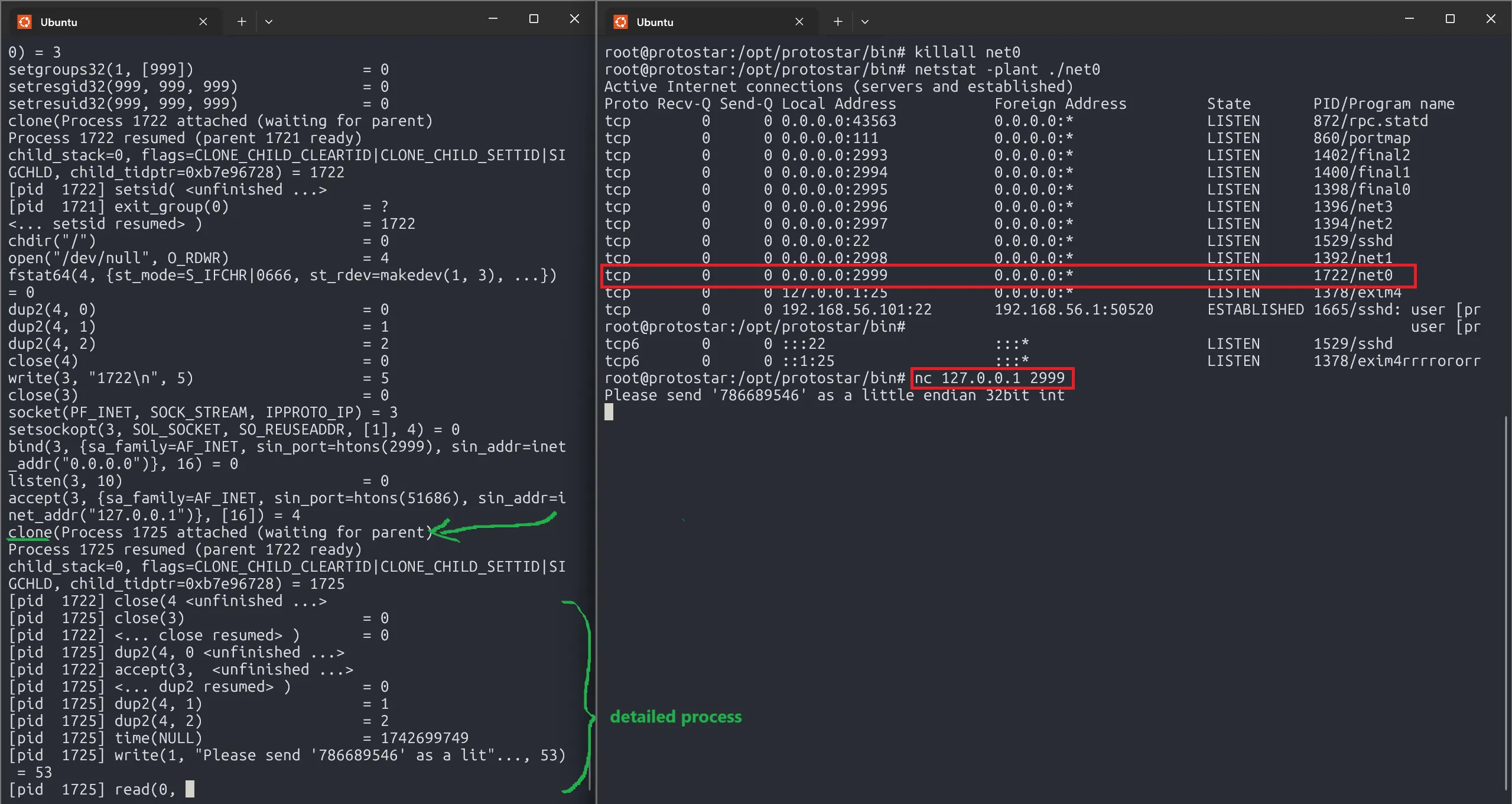

Now we will create a TCP connection to that port.
Once the TCP connection is established, the program clones another process. This new process handles the Server-Client communication, while the parent process remains available to accept new connections from other networks.
On the Server side, it just makes the stdin as the copy of file descriptor 4, which represents the Server-Client connection. This means that, the Client can send data back and forth to the Server.
Nice! We now understand the working of three functions background_process(), serve_forever(), set_io(), we (Client) can send the required number in little-endian format to the Server to complete the challenge.
Solution
Now that we understand how data flows between the Client and Server, we can craft an exploit. Our goal is to send a number as a string in little-endian format to the Server.

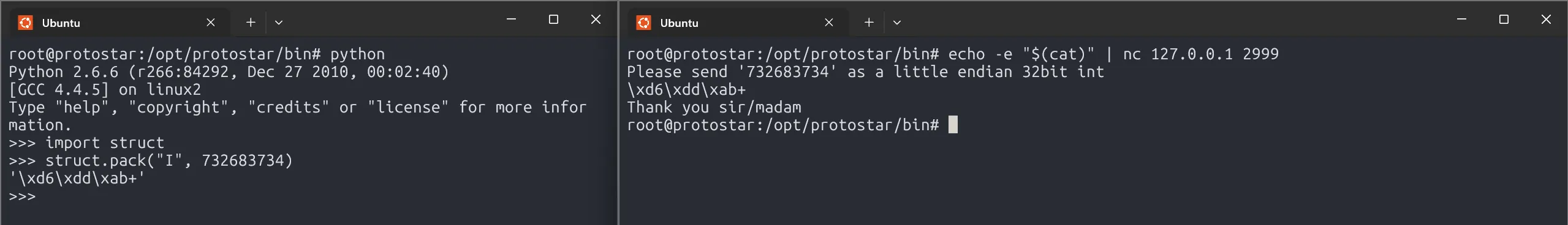

Let’s build our solution:
Here, I use cat to hold the screen to read from stdin. Then, I simply press CTRL + D to send the little-endian format number as string using echo -e to nc 127.0.0.1 2999.
Net 1
Description:
This level tests the ability to convert binary integers into ascii representation.
This level is at /opt/protostar/bin/net1
Source code:
#include "../common/common.c"
#define NAME "net1"
#define UID 998
#define GID 998
#define PORT 2998
void run()
{
char buf[12];
char fub[12];
char *q;
unsigned int wanted;
wanted = random();
sprintf(fub, "%d", wanted);
if(write(0, &wanted, sizeof(wanted)) != sizeof(wanted)) {
errx(1, ":(\n");
}
if(fgets(buf, sizeof(buf)-1, stdin) == NULL) {
errx(1, ":(\n");
}
q = strchr(buf, '\r'); if(q) *q = 0;
q = strchr(buf, '\n'); if(q) *q = 0;
if(strcmp(fub, buf) == 0) {
printf("you correctly sent the data\n");
} else {
printf("you didn't send the data properly\n");
}
}
int main(int argc, char **argv, char **envp)
{
int fd;
char *username;
/* Run the process as a daemon */
background_process(NAME, UID, GID);
/* Wait for socket activity and return */
fd = serve_forever(PORT);
/* Set the client socket to STDIN, STDOUT, and STDERR */
set_io(fd);
/* Don't do this :> */
srandom(time(NULL));
run();
}Analysis
This level is very similar to Net 0, but this time, we’re working with port 2998.
Since we already understand the underlying working of three functions background_process(), serve_forever(), set_io() from Net 0, let’s focus on how the run() function handles Server-Client interacton.
The program first generates a random unsigned integer wanted and writes it to stdin:
if(write(0, &wanted, sizeof(wanted)) != sizeof(wanted)) {
errx(1, ":(\n");
}But wait?! How does writing to stdin make sense? Well, since the connection between the Client and Server is already established, this actually sends wanted to the Client’s stdout!
Our job as the client is simple:
- Read the binary integer from
stdout. - Convert it into string
- Send it back to the Server.
This will be the key to beat this level!
Solution
According to the Python socket documentation, which perfectly fits our case, we can craft an exploit on the Client side to solve this challenge.
Here’s my script:
import socket
import struct
# Establish Client-Server Connection
HOST = '127.0.0.1'
PORT = 2998
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((HOST, PORT))
# Receive 4-byte unsigned integer from Server
data = s.recv(4)
# Convert raw byte data to unsigned integer
n = struct.unpack("I", data)[0]
# Send the number back as a string with a newline
# to handle fgets()
s.send(str(n) + "\n")
# Receive message from Server (success or fail)
message = s.recv(1024)
print messageRun the script and receive the success message!
user@protostar:~$ python script.py
you correctly sent the dataNet 2
Description:
This code tests the ability to add up 4 unsigned 32-bit integers. Hint: Keep in mind that it wraps.
This level is at /opt/protostar/bin/net2
Source code:
#include "../common/common.c"
#define NAME "net2"
#define UID 997
#define GID 997
#define PORT 2997
void run()
{
unsigned int quad[4];
int i;
unsigned int result, wanted;
result = 0;
for(i = 0; i < 4; i++) {
quad[i] = random();
result += quad[i];
if(write(0, &(quad[i]), sizeof(result)) != sizeof(result)) {
errx(1, ":(\n");
}
}
if(read(0, &wanted, sizeof(result)) != sizeof(result)) {
errx(1, ":<\n");
}
if(result == wanted) {
printf("you added them correctly\n");
} else {
printf("sorry, try again. invalid\n");
}
}
int main(int argc, char **argv, char **envp)
{
int fd;
char *username;
/* Run the process as a daemon */
background_process(NAME, UID, GID);
/* Wait for socket activity and return */
fd = serve_forever(PORT);
/* Set the client socket to STDIN, STDOUT, and STDERR */
set_io(fd);
/* Don't do this :> */
srandom(time(NULL));
run();
}Analysis
This level is similar to Net 0, but now we’re working with port 2997. The server generates four random 32-bit unsigned integers, adds them together, and sends each number to the client. The client’s job is to read these numbers, compute their sum, and send it back.
However, there’s an important detail: since the numbers are unsigned 32-bit integers, their sum might exceed 32 bits, causing an Integer Overflow. In C, when an unsigned integer overflows, any extra bits beyond 32 bits are discarded automatically. To ensure we handle this correctly on the client side, we can simulate this behavior by applying & 0xffffffff. This operation keeps only the lower 32 bits, making sure our sum behaves exactly like an overflow in a 32-bit system.
So, our approach is simple:
- Read four numbers from the server.
- Add them together while ensuring overflow is handled.
- Send the final sum back to the server.
By doing this, we can correctly match the server’s expected result and pass the challenge.
Solution
Here’s my script:
import socket
import struct
# Establish Client-Server Connection
HOST = '127.0.0.1'
PORT = 2997
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((HOST, PORT))
# Receive data from Server & Sum data
sum = 0
for i in range(4):
n = s.recv(4)
sum += struct.unpack("I", n)[0]
# Send sum back to Server + Handle Integer Overflow
s.send(struct.pack("I", sum & 0xFFFFFFFF))
# Receive message from Server (success or fail)
message = s.recv(1024)
print messageAnd the success message:
user@protostar:~$ python script.py
you added them correctly
