Overview
Last week I participated in BYUCTF 2025, and this was my first ever CTF. I managed to solve 4/6 Rev chals, it is truly a big achievement for myself ❄️.
Two of them were Android reverse challenges, which gave me a really hard time. I struggled a lot, but after plenty of trial and error, I finally solved them. In this blog, I will show you how I solved them.
After this comp, I’ve realized that Android reversing is something I definitely need to work on. Next time, I’m coming back to kill those Android revs, haha.
You can get the source of 4 challenges here.
Baby Android 1

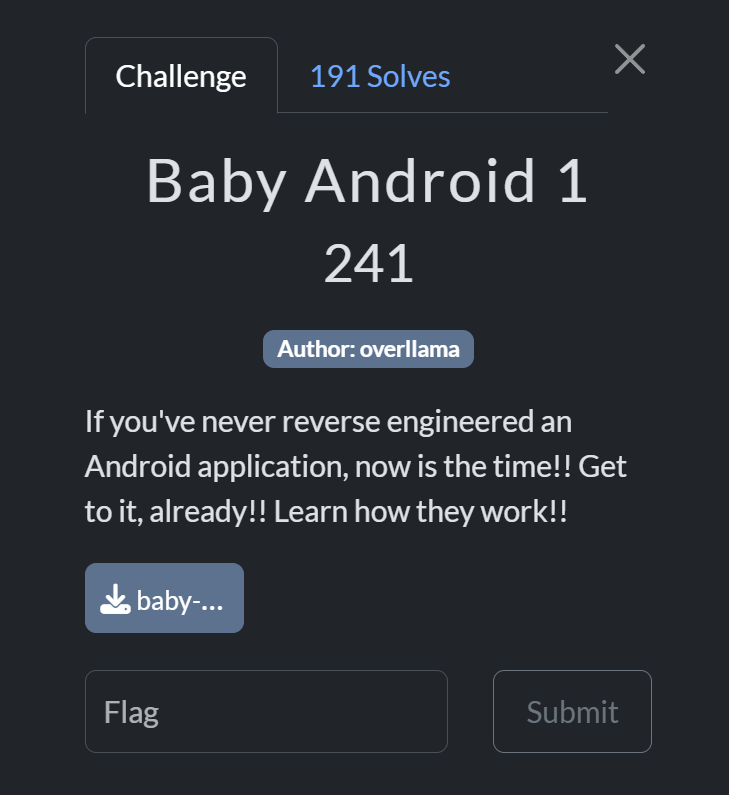

Description
Analysis

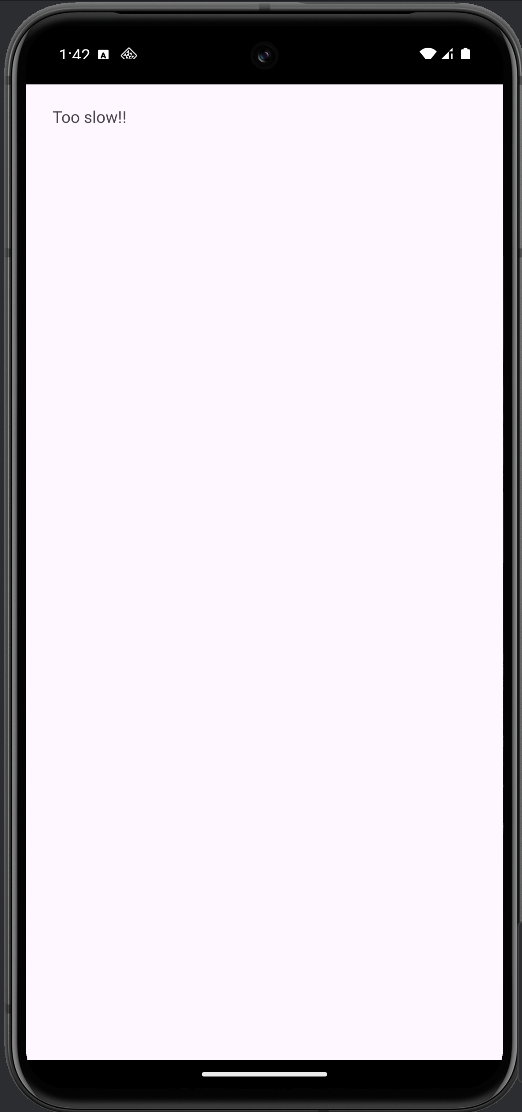

At first glance, I see that we have an .apk file. So I try to run that file in Android Studio, but nothing useful here, except the string “Too slow!!”.
When loading the .apk file in jadx, in MainActivity of byuctf.downwiththefrench, we can see that the string “Too slow!!” is assigned to id.homeText inside “R” class.
package byuctf.downwiththefrench;
import android.os.Bundle;
import android.widget.TextView;
import androidx.appcompat.app.AppCompatActivity;
/* loaded from: classes3.dex */
public class MainActivity extends AppCompatActivity {
@Override // androidx.fragment.app.FragmentActivity, androidx.activity.ComponentActivity, androidx.core.app.ComponentActivity, android.app.Activity
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
Utilities util = new Utilities(this);
util.cleanUp();
TextView homeText = (TextView) findViewById(R.id.homeText);
homeText.setText("Too slow!!");
}

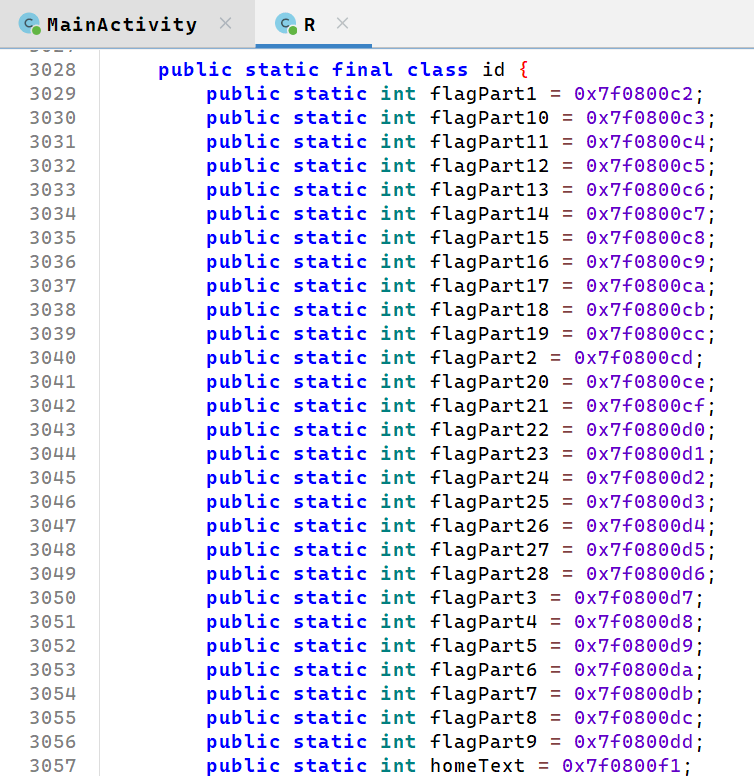

}Looking at the “R” class, there is a bunch of flagPart[1-28] at different addresses.
When I press x on the keyboard at flagPart1 to see where it is being used. The screen popped up showing that those flagPart[1-28] are used inside function cleanUp().
In cleanUp() function, it is replacing all characters of the real flag with an empty string, except “homeText”!
public void cleanUp() {
TextView flag = (TextView) this.activity.findViewById(R.id.flagPart1);
flag.setText("");
TextView flag2 = (TextView) this.activity.findViewById(R.id.flagPart2);
flag2.setText("");
TextView flag3 = (TextView) this.activity.findViewById(R.id.flagPart3);
flag3.setText("");
TextView flag4 = (TextView) this.activity.findViewById(R.id.flagPart4);
flag4.setText("");
TextView flag5 = (TextView) this.activity.findViewById(R.id.flagPart5);
flag5.setText("");
TextView flag6 = (TextView) this.activity.findViewById(R.id.flagPart6);
flag6.setText("");
TextView flag7 = (TextView) this.activity.findViewById(R.id.flagPart7);
flag7.setText("");
TextView flag8 = (TextView) this.activity.findViewById(R.id.flagPart8);
flag8.setText("");
TextView flag9 = (TextView) this.activity.findViewById(R.id.flagPart9);
flag9.setText("");
TextView flag10 = (TextView) this.activity.findViewById(R.id.flagPart10);
flag10.setText("");
TextView flag11 = (TextView) this.activity.findViewById(R.id.flagPart11);
flag11.setText("");
TextView flag12 = (TextView) this.activity.findViewById(R.id.flagPart12);
flag12.setText("");
TextView flag13 = (TextView) this.activity.findViewById(R.id.flagPart13);
flag13.setText("");
TextView flag14 = (TextView) this.activity.findViewById(R.id.flagPart14);
flag14.setText("");
TextView flag15 = (TextView) this.activity.findViewById(R.id.flagPart15);
flag15.setText("");
TextView flag16 = (TextView) this.activity.findViewById(R.id.flagPart16);
flag16.setText("");
TextView flag17 = (TextView) this.activity.findViewById(R.id.flagPart17);
flag17.setText("");
TextView flag18 = (TextView) this.activity.findViewById(R.id.flagPart18);
flag18.setText("");
TextView flag19 = (TextView) this.activity.findViewById(R.id.flagPart19);
flag19.setText("");
TextView flag20 = (TextView) this.activity.findViewById(R.id.flagPart20);
flag20.setText("");
TextView flag21 = (TextView) this.activity.findViewById(R.id.flagPart21);
flag21.setText("");
TextView flag22 = (TextView) this.activity.findViewById(R.id.flagPart22);
flag22.setText("");
TextView flag23 = (TextView) this.activity.findViewById(R.id.flagPart23);
flag23.setText("");
TextView flag24 = (TextView) this.activity.findViewById(R.id.flagPart24);
flag24.setText("");
TextView flag25 = (TextView) this.activity.findViewById(R.id.flagPart25);
flag25.setText("");
TextView flag26 = (TextView) this.activity.findViewById(R.id.flagPart26);
flag26.setText("");
TextView flag27 = (TextView) this.activity.findViewById(R.id.flagPart27);
flag27.setText("");
TextView flag28 = (TextView) this.activity.findViewById(R.id.flagPart28);
flag28.setText("");
}So, the flow of the program is as follow:
Create content in
activity_main.cleanUp()function sets all flagPart to empty string.Find the id.homeText from “R” class and assign it with the string “Too slow!!”.
This is the reason why in runtime, we only see the text “Too slow!!”. In Android Studio, it takes the file activity_main.xml to render the activities, BUT because the program already sets all flagPart to empty string, the only visible string is homeText!
My solution

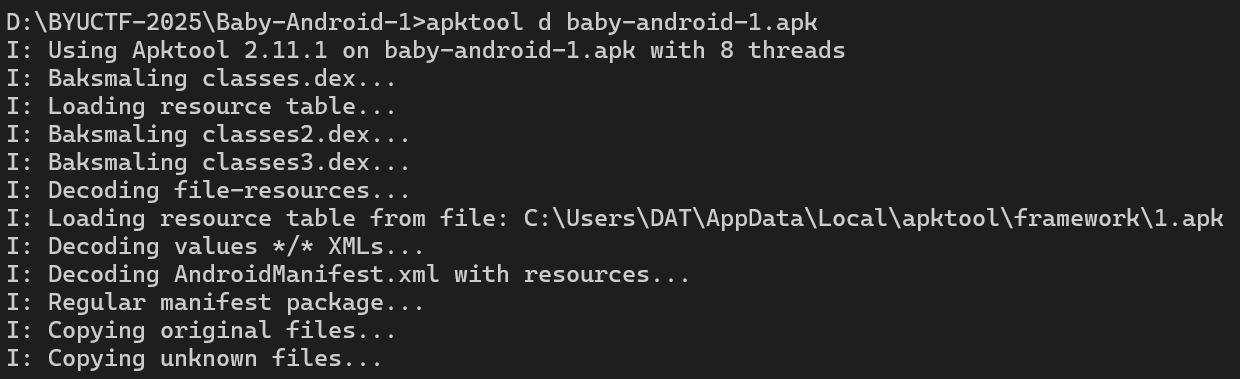

Our goal is to get the activity_main.xml, so I use the tool named apktool to extract the .apk file.

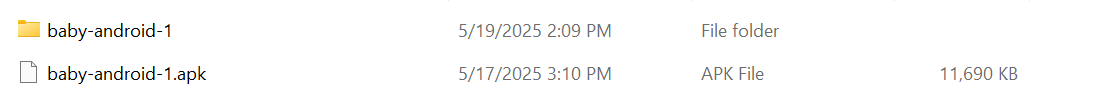

This is what I got.
I follow this path baby-android-1\res\layout and get the activity_main.xml file. Open that file up in web browser, I see the texts, which is a good signal :D

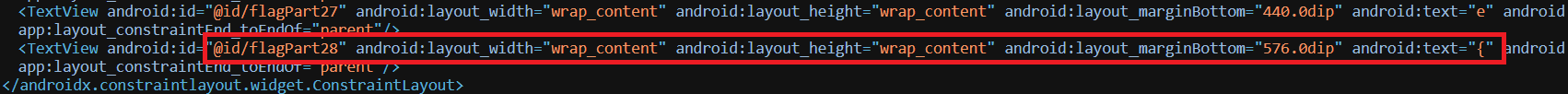

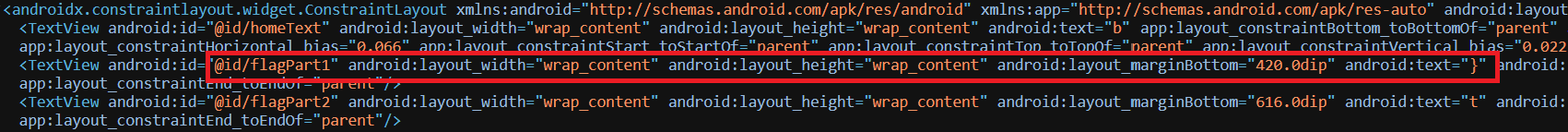

However, flagPart1 is holding char ”}”, and flagPart28 is holding char ”{”, so I think the flag is in reverse order.
But this {e4_if_e_efcopukd0inrdccyat} is a wrong one :(
Inspecting the XML file carefully, I find there are information about constraints to Top, Bottom, Start, End and marginEnd, marginBottom. I googled around and found those two useful Youtube videos.
When looking at this code:
<TextView
android:id="@id/homeText"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="b"
app:layout_constraintBottom_toBottomOf="parent"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintHorizontal_bias="0.066"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toTopOf="parent"
app:layout_constraintVertical_bias="0.022"

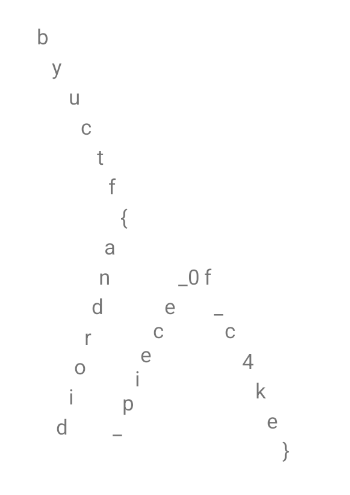

/>The letter “b” was the first character shown on the screen, appearing near the top-left corner. Because app:layout_constraintHorizontal_bias="0.066" pushes it to the left and app:layout_constraintVertical_bias="0.022" pushes it to the top.
For the id/flagPart[1-28], they are using marginBottom and marginEnd.
If marginBottom is higher, that text is more likely close to the Top (move upward).
If marginEnd is higher, that text is more likely close to the Start (move to the left, presumably it is using RTL).

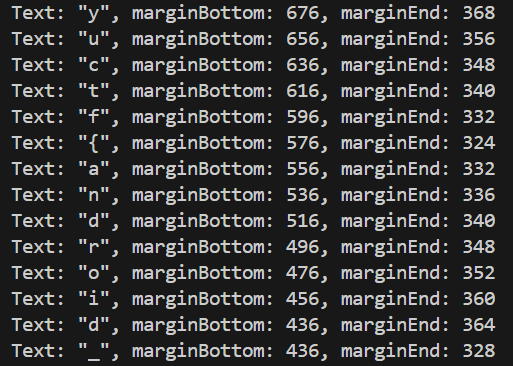

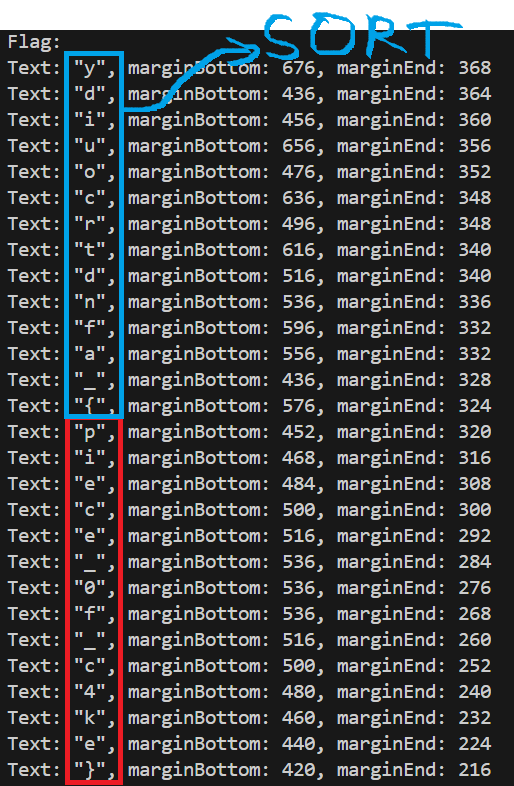

Now, I asked Google AI Studio to create for me a C++ code to construct a vector<pair<string, pair<int, int>>> from flagPart[1-28] in the .xml file!
In the vector, string is the text, and pair<int, int> is pair<marginBottom, marginTop>.
C++ code to get text, marginBottom, marginTop
#include <iostream>
#include <vector>
#include <string>
#include <fstream>
#include <sstream>
#include <algorithm>
#include <utility> // For std::pair
#include <stdexcept> // For std::stoi, std::stod
// Helper structure to hold parsed data before sorting
struct TextViewData
{
int id_num; // Numeric part of the id (e.g., 1 from flagPart1)
std::string text;
int marginBottom;
int marginEnd;
// For sorting
bool operator<(const TextViewData &other) const
{
return id_num < other.id_num;
}
};
// Helper function to extract attribute value
// Example: extractAttributeValue(line, "android:text=\"", "\"")
std::string extractAttributeValue(const std::string &line, const std::string &attr_start_token, const std::string &attr_end_token)
{
size_t start_pos = line.find(attr_start_token);
if (start_pos == std::string::npos)
{
return ""; // Attribute not found
}
start_pos += attr_start_token.length();
size_t end_pos = line.find(attr_end_token, start_pos);
if (end_pos == std::string::npos)
{
return ""; // End token not found
}
return line.substr(start_pos, end_pos - start_pos);
}
// Helper function to convert margin string (e.g., "420.0dip") to int
int parseMarginValue(const std::string &margin_str_full)
{
if (margin_str_full.empty())
return 0;
// Remove "dip"
std::string num_str = margin_str_full;
size_t dip_pos = num_str.rfind("dip");
if (dip_pos != std::string::npos)
{
num_str.erase(dip_pos);
}
try
{
// Convert to double first to handle ".0", then to int
return static_cast<int>(std::stod(num_str));
}
catch (const std::invalid_argument &ia)
{
std::cerr << "Invalid argument for margin conversion: " << margin_str_full << std::endl;
}
catch (const std::out_of_range &oor)
{
std::cerr << "Out of range for margin conversion: " << margin_str_full << std::endl;
}
return 0; // Default or error value
}
// Helper function to extract the numeric part from an ID like "flagPart12"
int extractIdNum(const std::string &id_full_str)
{
if (id_full_str.empty())
return -1; // Invalid ID
// Expecting format like "@id/flagPartX"
std::string id_val = id_full_str;
size_t prefix_pos = id_val.find("@id/");
if (prefix_pos != std::string::npos)
{
id_val = id_val.substr(prefix_pos + 4); // Length of "@id/"
}
// Now id_val should be something like "flagPart12"
// Find the start of the number
size_t num_start = 0;
while (num_start < id_val.length() && !isdigit(id_val[num_start]))
{
num_start++;
}
if (num_start == id_val.length())
return -1; // No number found
try
{
return std::stoi(id_val.substr(num_start));
}
catch (const std::invalid_argument &ia)
{
std::cerr << "Invalid argument for ID number conversion: " << id_val.substr(num_start) << std::endl;
}
catch (const std::out_of_range &oor)
{
std::cerr << "Out of range for ID number conversion: " << id_val.substr(num_start) << std::endl;
}
return -1; // Default or error value
}
int main()
{
std::string filename = "input.xml"; // Or pass as argument
// For demonstration, using a stringstream with your provided data
std::string xml_content = R"(
<TextView android:id="@id/flagPart1" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="420.0dip" android:text="}" android:layout_marginEnd="216.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart2" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="616.0dip" android:text="t" android:layout_marginEnd="340.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart3" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="556.0dip" android:text="a" android:layout_marginEnd="332.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart4" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="676.0dip" android:text="y" android:layout_marginEnd="368.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart5" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="500.0dip" android:text="c" android:layout_marginEnd="252.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart6" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="636.0dip" android:text="c" android:layout_marginEnd="348.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart7" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="436.0dip" android:text="d" android:layout_marginEnd="364.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart8" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="496.0dip" android:text="r" android:layout_marginEnd="348.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart9" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="536.0dip" android:text="n" android:layout_marginEnd="336.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart10" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="456.0dip" android:text="i" android:layout_marginEnd="360.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart11" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="536.0dip" android:text="0" android:layout_marginEnd="276.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart12" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="516.0dip" android:text="d" android:layout_marginEnd="340.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart13" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="460.0dip" android:text="k" android:layout_marginEnd="232.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart14" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="656.0dip" android:text="u" android:layout_marginEnd="356.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart15" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="452.0dip" android:text="p" android:layout_marginEnd="320.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart16" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="476.0dip" android:text="o" android:layout_marginEnd="352.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart17" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="500.0dip" android:text="c" android:layout_marginEnd="300.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart18" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="596.0dip" android:text="f" android:layout_marginEnd="332.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart19" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="484.0dip" android:text="e" android:layout_marginEnd="308.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart20" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="436.0dip" android:text="_" android:layout_marginEnd="328.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart21" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="516.0dip" android:text="e" android:layout_marginEnd="292.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart22" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="536.0dip" android:text="_" android:layout_marginEnd="284.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart23" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="536.0dip" android:text="f" android:layout_marginEnd="268.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart24" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="468.0dip" android:text="i" android:layout_marginEnd="316.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart25" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="516.0dip" android:text="_" android:layout_marginEnd="260.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart26" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="480.0dip" android:text="4" android:layout_marginEnd="240.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart27" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="440.0dip" android:text="e" android:layout_marginEnd="224.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart28" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="576.0dip" android:text="{" android:layout_marginEnd="324.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
)";
std::istringstream file_stream(xml_content); // Use this instead of std::ifstream for testing
// Or to read from an actual file:
// std::ifstream file_stream(filename);
// if (!file_stream.is_open()) {
// std::cerr << "Error opening file: " << filename << std::endl;
// return 1;
// }
std::string line;
std::vector<TextViewData> parsed_items;
while (std::getline(file_stream, line))
{
// Basic check if it's a TextView line we're interested in
if (line.find("<TextView") == std::string::npos || line.find("android:id=\"@id/flagPart") == std::string::npos)
{
continue;
}
TextViewData current_item;
std::string id_str = extractAttributeValue(line, "android:id=\"", "\"");
current_item.id_num = extractIdNum(id_str);
if (current_item.id_num == -1)
{
std::cerr << "Warning: Could not parse ID from line: " << line << std::endl;
continue;
}
current_item.text = extractAttributeValue(line, "android:text=\"", "\"");
std::string mb_str = extractAttributeValue(line, "android:layout_marginBottom=\"", "dip\"");
// Also handle if the attribute ends directly with quote without "dip"
if (mb_str.empty())
mb_str = extractAttributeValue(line, "android:layout_marginBottom=\"", "\"");
current_item.marginBottom = parseMarginValue(mb_str);
std::string me_str = extractAttributeValue(line, "android:layout_marginEnd=\"", "dip\"");
if (me_str.empty())
me_str = extractAttributeValue(line, "android:layout_marginEnd=\"", "\"");
current_item.marginEnd = parseMarginValue(me_str);
parsed_items.push_back(current_item);
}
// Sort the items by their ID number
std::sort(parsed_items.begin(), parsed_items.end());
// Create the final desired vector
std::vector<std::pair<std::string, std::pair<int, int>>> result_vector;
for (const auto &item : parsed_items)
{
result_vector.push_back({item.text, {item.marginBottom, item.marginEnd}});
}
// Print the result
std::cout << "Result: \n";
for (const auto &entry : result_vector)
{
std::cout << "Text: \"" << entry.first << "\", marginBottom: " << entry.second.first
<< ", marginEnd: " << entry.second.second << std::endl;
}
return 0;
}The result looks good!
My job now is to sort on marginEnd, then marginBottom in descending order.
Here is my code.
bool myFirstSortFunction(std::vector<std::pair<std::string, std::pair<int, int>>> &result_vector)
{
std::sort(result_vector.begin(), result_vector.end(), [](
const std::pair<std::string, std::pair<int, int>> &a,
const std::pair<std::string, std::pair<int, int>> &b) {
if(a.second.second == b.second.second)
return a.second.first > b.second.first;
return a.second.second > b.second.second;
});
return true;
}We get the string piece_0f_c4ke} (red part).
Now, I will sort the blue part in this sequence marginBottom -> marginEnd in descending order.
bool mySecondSortFunction(std::vector<std::pair<std::string, std::pair<int, int>>> &result_vector)
{
std::sort(result_vector.begin(), result_vector.end(), [](
const std::pair<std::string, std::pair<int, int>> &a,
const std::pair<std::string, std::pair<int, int>> &b){
if(a.second.first == b.second.first)
return a.second.second > b.second.second;
return a.second.first > b.second.first;
});
return true;
}I successfully sort that blue part.
Now, here is the full script to get the flag!
Full script
#include <iostream>
#include <vector>
#include <string>
#include <fstream>
#include <sstream>
#include <algorithm>
#include <utility> // For std::pair
#include <stdexcept> // For std::stoi, std::stod
// Helper structure to hold parsed data before sorting
struct TextViewData
{
int id_num; // Numeric part of the id (e.g., 1 from flagPart1)
std::string text;
int marginBottom;
int marginEnd;
// For sorting
bool operator<(const TextViewData &other) const
{
return id_num < other.id_num;
}
};
// Helper function to extract attribute value
// Example: extractAttributeValue(line, "android:text=\"", "\"")
std::string extractAttributeValue(const std::string &line, const std::string &attr_start_token, const std::string &attr_end_token)
{
size_t start_pos = line.find(attr_start_token);
if (start_pos == std::string::npos)
{
return ""; // Attribute not found
}
start_pos += attr_start_token.length();
size_t end_pos = line.find(attr_end_token, start_pos);
if (end_pos == std::string::npos)
{
return ""; // End token not found
}
return line.substr(start_pos, end_pos - start_pos);
}
// Helper function to convert margin string (e.g., "420.0dip") to int
int parseMarginValue(const std::string &margin_str_full)
{
if (margin_str_full.empty())
return 0;
// Remove "dip"
std::string num_str = margin_str_full;
size_t dip_pos = num_str.rfind("dip");
if (dip_pos != std::string::npos)
{
num_str.erase(dip_pos);
}
try
{
// Convert to double first to handle ".0", then to int
return static_cast<int>(std::stod(num_str));
}
catch (const std::invalid_argument &ia)
{
std::cerr << "Invalid argument for margin conversion: " << margin_str_full << std::endl;
}
catch (const std::out_of_range &oor)
{
std::cerr << "Out of range for margin conversion: " << margin_str_full << std::endl;
}
return 0; // Default or error value
}
// Helper function to extract the numeric part from an ID like "flagPart12"
int extractIdNum(const std::string &id_full_str)
{
if (id_full_str.empty())
return -1; // Invalid ID
// Expecting format like "@id/flagPartX"
std::string id_val = id_full_str;
size_t prefix_pos = id_val.find("@id/");
if (prefix_pos != std::string::npos)
{
id_val = id_val.substr(prefix_pos + 4); // Length of "@id/"
}
// Now id_val should be something like "flagPart12"
// Find the start of the number
size_t num_start = 0;
while (num_start < id_val.length() && !isdigit(id_val[num_start]))
{
num_start++;
}
if (num_start == id_val.length())
return -1; // No number found
try
{
return std::stoi(id_val.substr(num_start));
}
catch (const std::invalid_argument &ia)
{
std::cerr << "Invalid argument for ID number conversion: " << id_val.substr(num_start) << std::endl;
}
catch (const std::out_of_range &oor)
{
std::cerr << "Out of range for ID number conversion: " << id_val.substr(num_start) << std::endl;
}
return -1; // Default or error value
}
bool myFirstSortFunction(std::vector<std::pair<std::string, std::pair<int, int>>> &result_vector)
{
std::sort(result_vector.begin(), result_vector.end(), [](const std::pair<std::string, std::pair<int, int>> &a, const std::pair<std::string, std::pair<int, int>> &b)
{
if(a.second.second == b.second.second)
return a.second.first > b.second.first;
return a.second.second > b.second.second; });
return true;
}
bool mySecondSortFunction(std::vector<std::pair<std::string, std::pair<int, int>>> &result_vector)
{
std::sort(result_vector.begin(), result_vector.end(), [](const std::pair<std::string, std::pair<int, int>> &a, const std::pair<std::string, std::pair<int, int>> &b)
{
if(a.second.first == b.second.first)
return a.second.second > b.second.second;
return a.second.first > b.second.first; });
return true;
}
int main()
{
std::string filename = "input.xml"; // Or pass as argument
// For demonstration, using a stringstream with your provided data
std::string xml_content = R"(
<TextView android:id="@id/flagPart1" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="420.0dip" android:text="}" android:layout_marginEnd="216.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart2" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="616.0dip" android:text="t" android:layout_marginEnd="340.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart3" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="556.0dip" android:text="a" android:layout_marginEnd="332.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart4" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="676.0dip" android:text="y" android:layout_marginEnd="368.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart5" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="500.0dip" android:text="c" android:layout_marginEnd="252.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart6" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="636.0dip" android:text="c" android:layout_marginEnd="348.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart7" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="436.0dip" android:text="d" android:layout_marginEnd="364.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart8" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="496.0dip" android:text="r" android:layout_marginEnd="348.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart9" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="536.0dip" android:text="n" android:layout_marginEnd="336.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart10" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="456.0dip" android:text="i" android:layout_marginEnd="360.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart11" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="536.0dip" android:text="0" android:layout_marginEnd="276.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart12" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="516.0dip" android:text="d" android:layout_marginEnd="340.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart13" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="460.0dip" android:text="k" android:layout_marginEnd="232.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart14" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="656.0dip" android:text="u" android:layout_marginEnd="356.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart15" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="452.0dip" android:text="p" android:layout_marginEnd="320.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart16" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="476.0dip" android:text="o" android:layout_marginEnd="352.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart17" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="500.0dip" android:text="c" android:layout_marginEnd="300.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart18" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="596.0dip" android:text="f" android:layout_marginEnd="332.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart19" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="484.0dip" android:text="e" android:layout_marginEnd="308.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart20" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="436.0dip" android:text="_" android:layout_marginEnd="328.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart21" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="516.0dip" android:text="e" android:layout_marginEnd="292.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart22" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="536.0dip" android:text="_" android:layout_marginEnd="284.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart23" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="536.0dip" android:text="f" android:layout_marginEnd="268.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart24" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="468.0dip" android:text="i" android:layout_marginEnd="316.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart25" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="516.0dip" android:text="_" android:layout_marginEnd="260.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart26" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="480.0dip" android:text="4" android:layout_marginEnd="240.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart27" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="440.0dip" android:text="e" android:layout_marginEnd="224.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
<TextView android:id="@id/flagPart28" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="576.0dip" android:text="{" android:layout_marginEnd="324.0dip" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent"/>
)";
std::istringstream file_stream(xml_content); // Use this instead of std::ifstream for testing
// Or to read from an actual file:
// std::ifstream file_stream(filename);
// if (!file_stream.is_open()) {
// std::cerr << "Error opening file: " << filename << std::endl;
// return 1;
// }
std::string line;
std::vector<TextViewData> parsed_items;
while (std::getline(file_stream, line))
{
// Basic check if it's a TextView line we're interested in
if (line.find("<TextView") == std::string::npos || line.find("android:id=\"@id/flagPart") == std::string::npos)
{
continue;
}
TextViewData current_item;
std::string id_str = extractAttributeValue(line, "android:id=\"", "\"");
current_item.id_num = extractIdNum(id_str);
if (current_item.id_num == -1)
{
std::cerr << "Warning: Could not parse ID from line: " << line << std::endl;
continue;
}
current_item.text = extractAttributeValue(line, "android:text=\"", "\"");
std::string mb_str = extractAttributeValue(line, "android:layout_marginBottom=\"", "dip\"");
// Also handle if the attribute ends directly with quote without "dip"
if (mb_str.empty())
mb_str = extractAttributeValue(line, "android:layout_marginBottom=\"", "\"");
current_item.marginBottom = parseMarginValue(mb_str);
std::string me_str = extractAttributeValue(line, "android:layout_marginEnd=\"", "dip\"");
if (me_str.empty())
me_str = extractAttributeValue(line, "android:layout_marginEnd=\"", "\"");
current_item.marginEnd = parseMarginValue(me_str);
parsed_items.push_back(current_item);
}
// Sort the items by their ID number
std::sort(parsed_items.begin(), parsed_items.end());
// Create the final desired vector
std::vector<std::pair<std::string, std::pair<int, int>>> result_vector;
for (const auto &item : parsed_items)
{
result_vector.push_back({item.text, {item.marginBottom, item.marginEnd}});
}
// Print the result
// std::cout << "Result: \n";
// for (const auto &entry : result_vector)
//{
// std::cout << "Text: \"" << entry.first << "\", marginBottom: " << entry.second.first
// << ", marginEnd: " << entry.second.second << std::endl;
//}
myFirstSortFunction(result_vector);
// std::cout << "Flag: \n";
// for (auto it = result_vector.rbegin(); it != result_vector.rend(); ++it)
//{
// std::cout << "Text: \"" << it->first << "\", marginBottom: " << it->second.first
// << ", marginEnd: " << it->second.second << std::endl;
// }
std::vector<std::pair<std::string, std::pair<int, int>>> tmp;
for (int i = 14; i < result_vector.size(); ++i)
tmp.push_back(result_vector[i]);
mySecondSortFunction(tmp);
// std::cout << "Flag: \n";
// for (auto it = tmp.rbegin(); it != tmp.rend(); ++it)
//{
// std::cout << "Text: \"" << it->first << "\", marginBottom: " << it->second.first
// << ", marginEnd: " << it->second.second << std::endl;
// }
std::cout << "Flag: b";
for (auto it = tmp.rbegin(); it != tmp.rend(); ++it)
{
std::cout << it->first;
}
for (int i = 13; i >= 0; --i)
{
std::cout << result_vector[i].first;
}
return 0;
}
Honestly, I didn’t have much experience with Android Studio during the comp, so I was banging my head around 5-6 hours with this double-sorting solution. I was wondering how it would work with Android Studio and tried that again myself, and it is SOO easy to get the flag :)
Solution Using Android Studio
Like the previous solution, I use the apktool to get activity_main.xml from the .apk file.

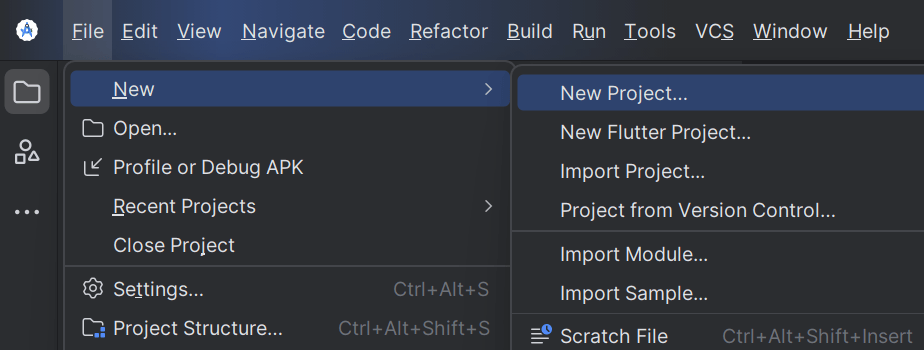

Next, I open Android Studio and create a new No Activity project using File → New → New Project....

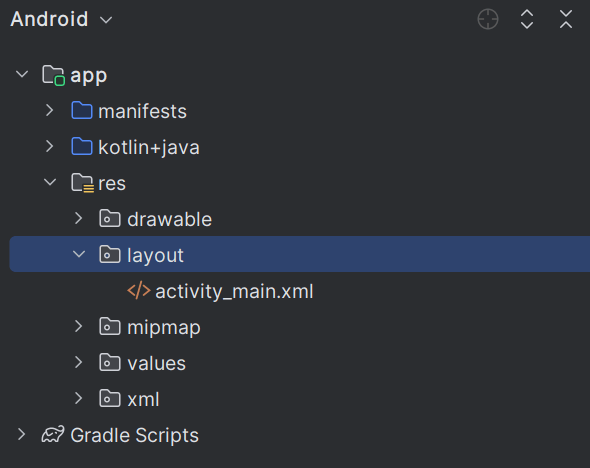

When the new project is created, I go to app → res and create a new folder named layout and copy the file activity_main.xml (get from apktool) to that newly-created folder.
Finally, open that file and we get our flag :)
Flag: byuctf{android_piece_0f_c4ke}
Baby Android 2

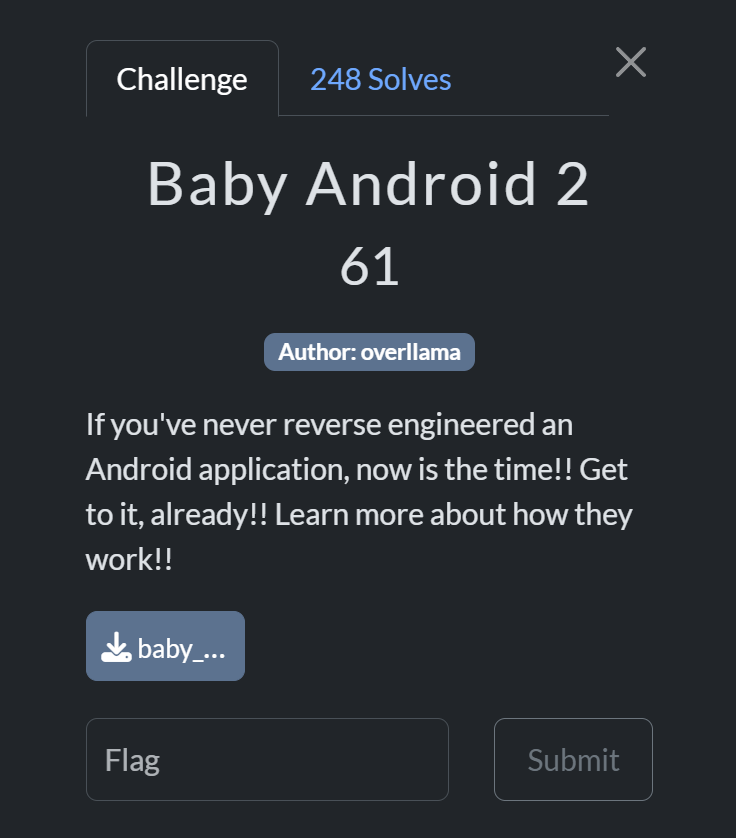

Description
Analysis

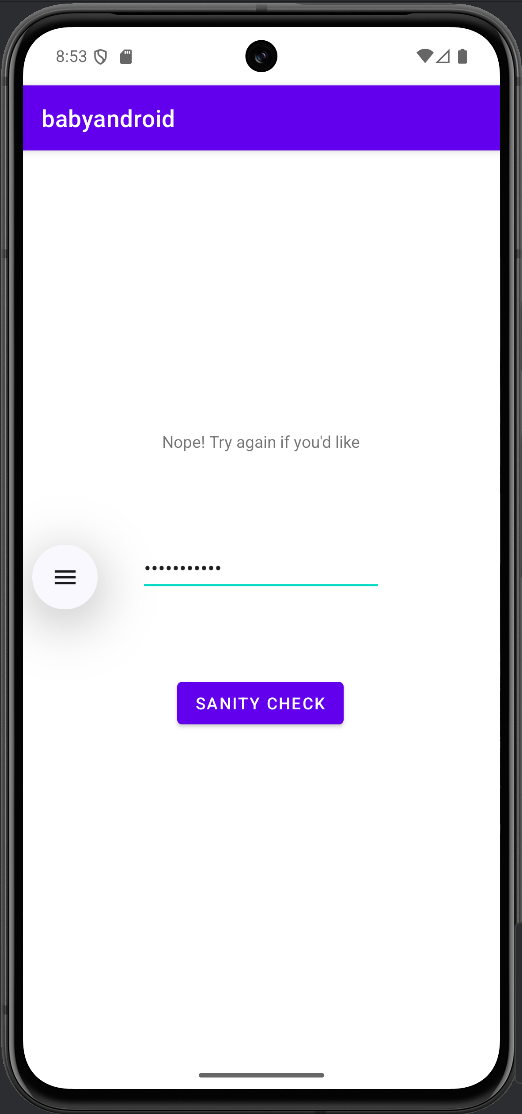

There is an .apk file, so I open it in Android Studio.

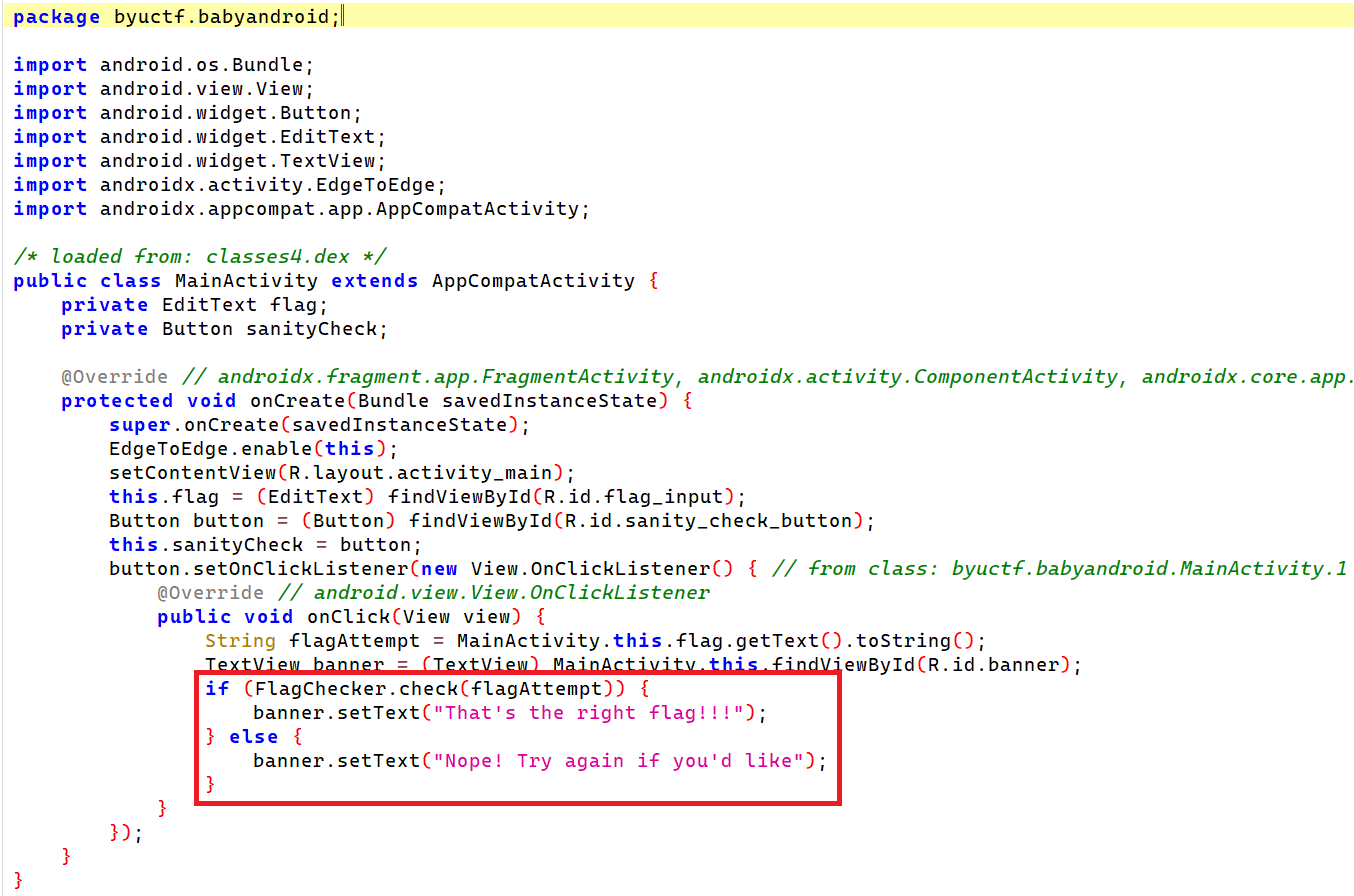

We get the wrong message! Let’s open that .apk file with jadx and navigate to MainActivity.

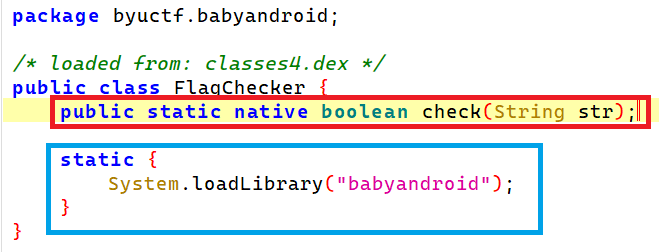

We are calling function check from FlagChecker to check our input. From here, we will get the success message.
The check function in FlagChecker is a native function, which means this function is loading from an external library. In this case, it is loading from the library libbabyandroid.so (blue part).

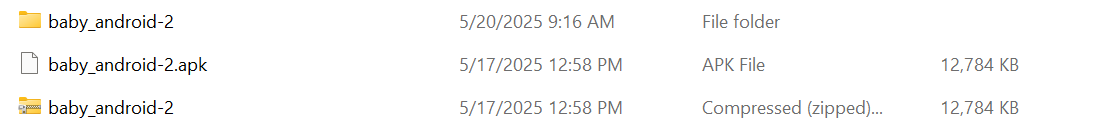

Since an .apk file is a compressed file that contains everything the app needs, including code, resources, and native libraries. We can change the .apk file to .zip file and unzip it to get the libbabyandroid.so file.

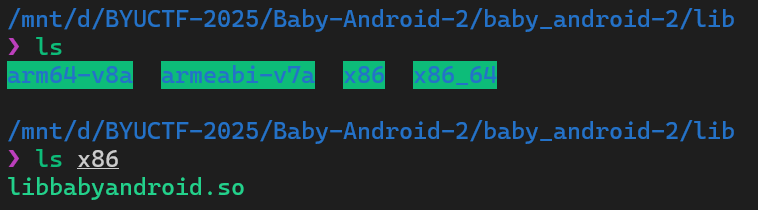

Navigate to lib folder and we get libbabyandroid.so.

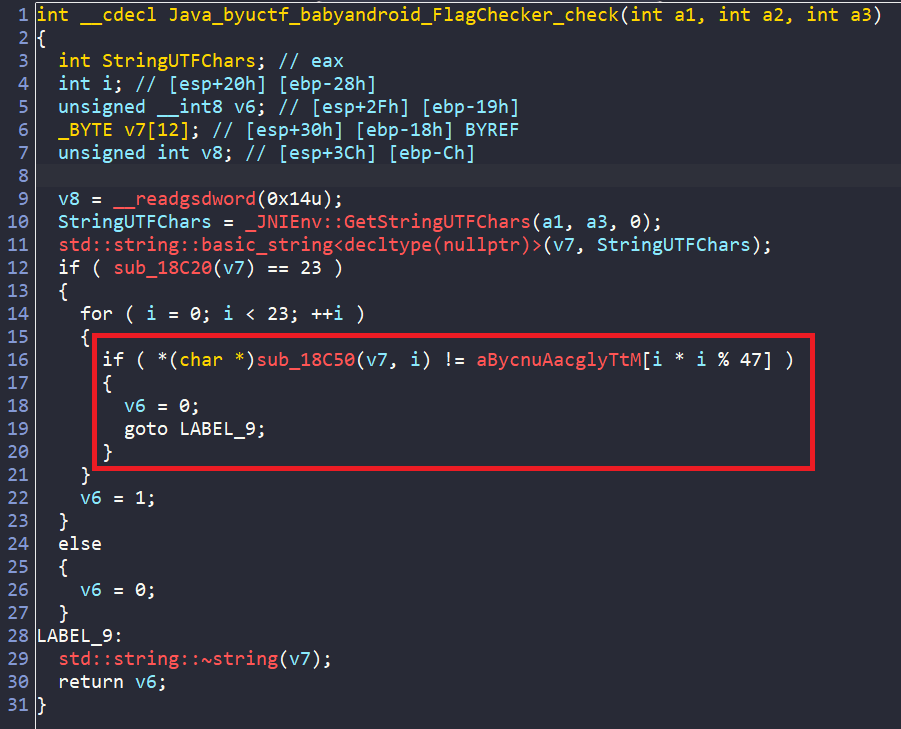

Let’s open that .so file in IDA and have a look at check function.
Check the string aBycnuAacglyTtM in IDA, it is a read only string contains the following data.
To get the success message, this check function must return 1. This can only be achieved when the length of string is 23 and each char must be equal to aBycnuAacglyTtM[i * i % 47].
Solution
From what we have analyzed, we can get the correct input by running a loop 23 times and get the character from the string aBycnuAacglyTtM at index i * i % 47 by each iteration.
Here is the script.
aBycnuAacglyTtM = "bycnu)_aacGly~}tt+?=<_ML?f^i_vETkG+b{nDJrVp6=)="
flag = ""
for i in range(0, 23):
flag += aBycnuAacglyTtM[i * i % 47]
print(flag)Flag: byuctf{c++_in_an_apk??}
Thanks for reading!
